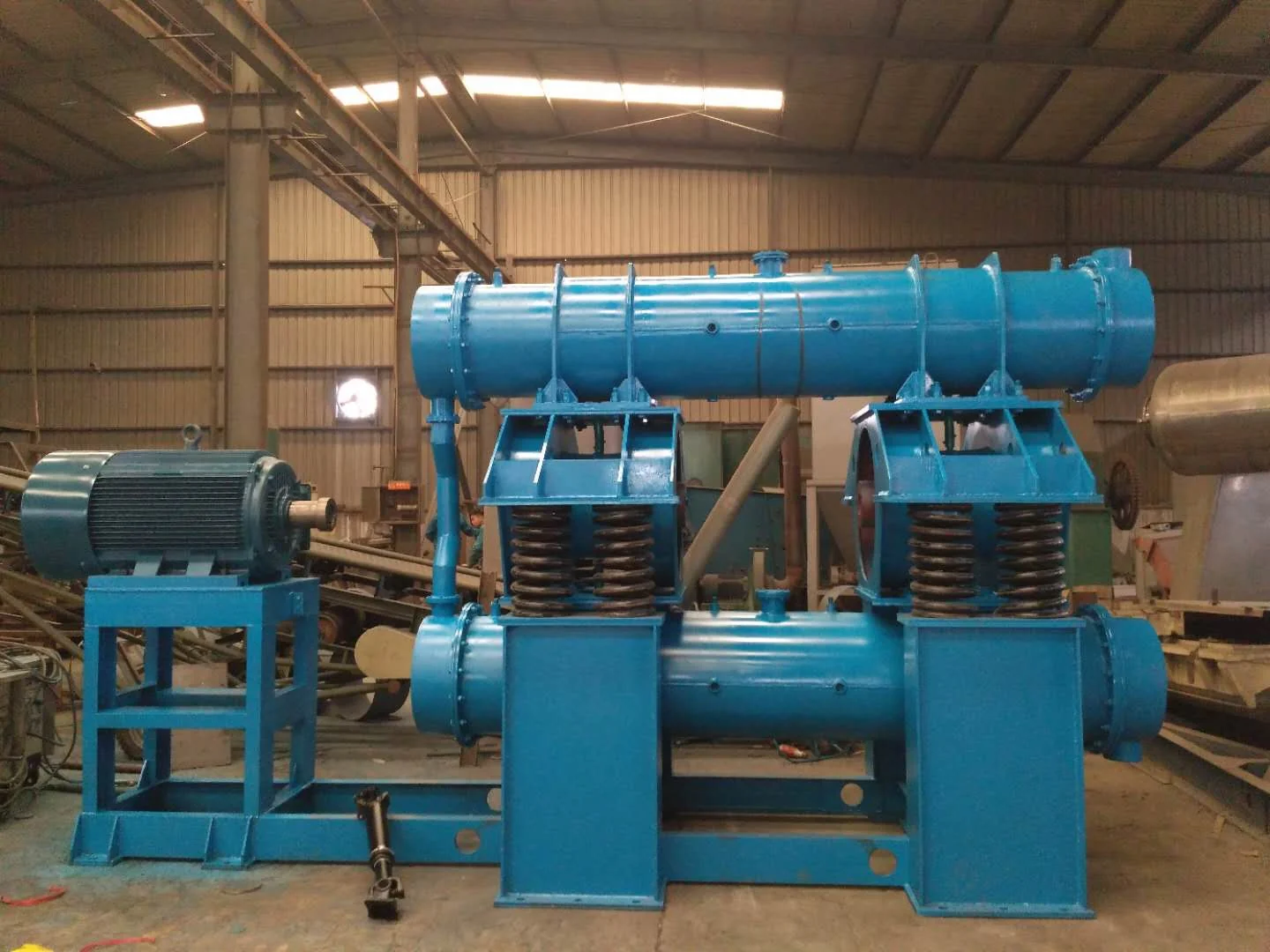

Two grinding tubes
A compact vibrating arrangement accommodates two grinding chambers.
Grinding EQUIPMENT
Twin-tube Vibrating Mill
Twin-chamber vibratory grinding with configurations for dry or wet processing.
- Listed chamber sizes
- 100–1,200 L
- Listed feed size
- 0–25 mm
- Listed drive speed
- 960 rpm
DESIGNED FOR THE PROCESS
Overview
Twin-chamber vibratory grinding with configurations for dry or wet processing. We configure the equipment around your material, required output and installation conditions.
Applications
- Mineral processing
- Ceramic powders
- Chemical materials
- Fine grinding
Process options
Dry, wet, open and enclosed arrangements are described in the range.
Custom configurations
Three-tube and four-tube designs can be discussed for specific requirements.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Listed chamber sizes | 100–1,200 L |
|---|---|
| Listed feed size | 0–25 mm |
| Listed drive speed | 960 rpm |
| Grinding mode | Dry or wet, configuration-dependent |
| Model | Listed capacity (t/h) | Listed power (kW) |
|---|---|---|
| 100 | 0.6–1.3 | 17–22 |
| 200 | 0.75–2.5 | 22–37 |
| 400 | 0.8–4.8 | 45–55 |
| 600 | 1–8 | 45 |
| 800 | 1–10 | 55–75 |
| 1200 | 1–16 | 75–90 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK
Equipment Gallery

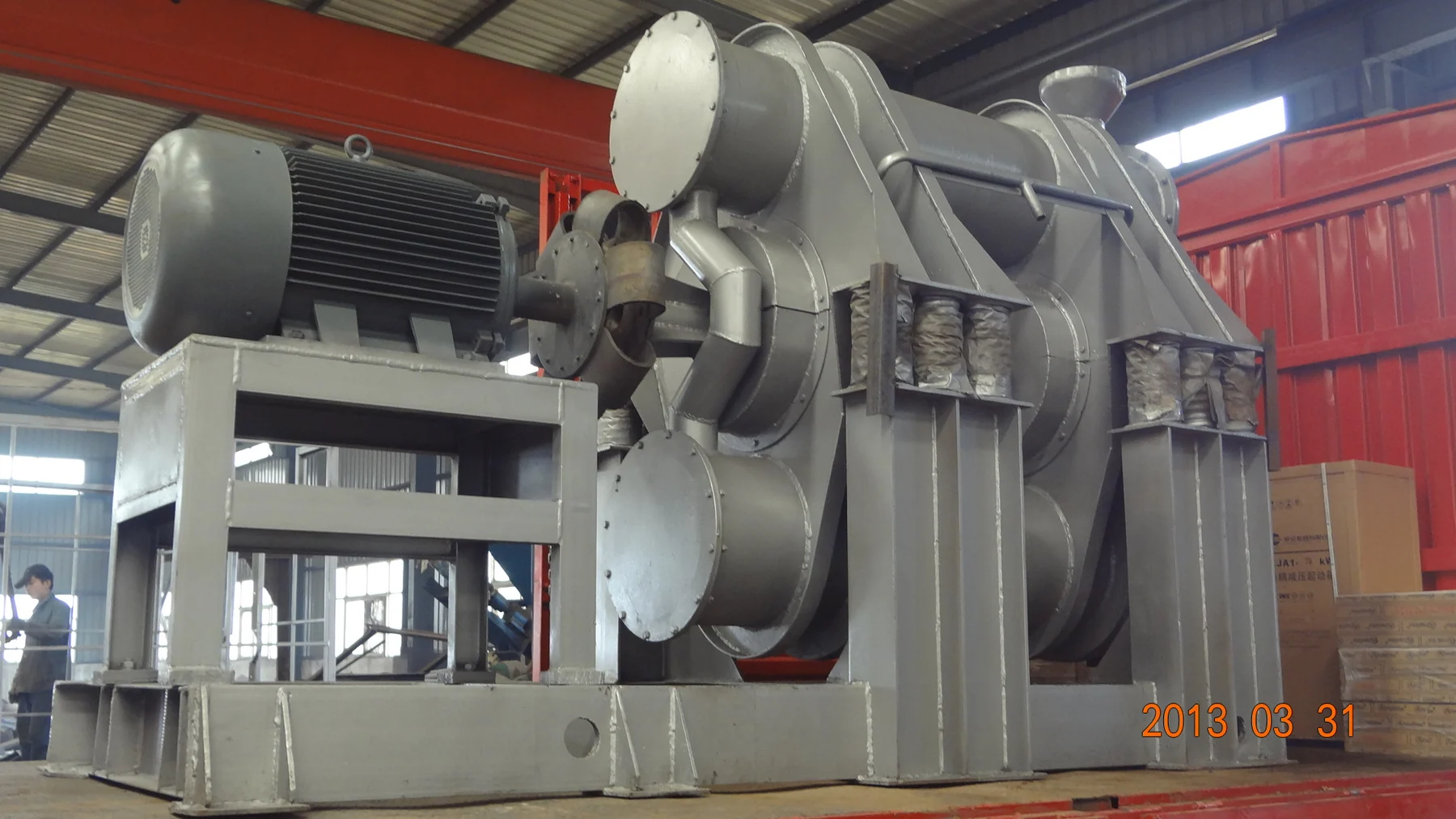

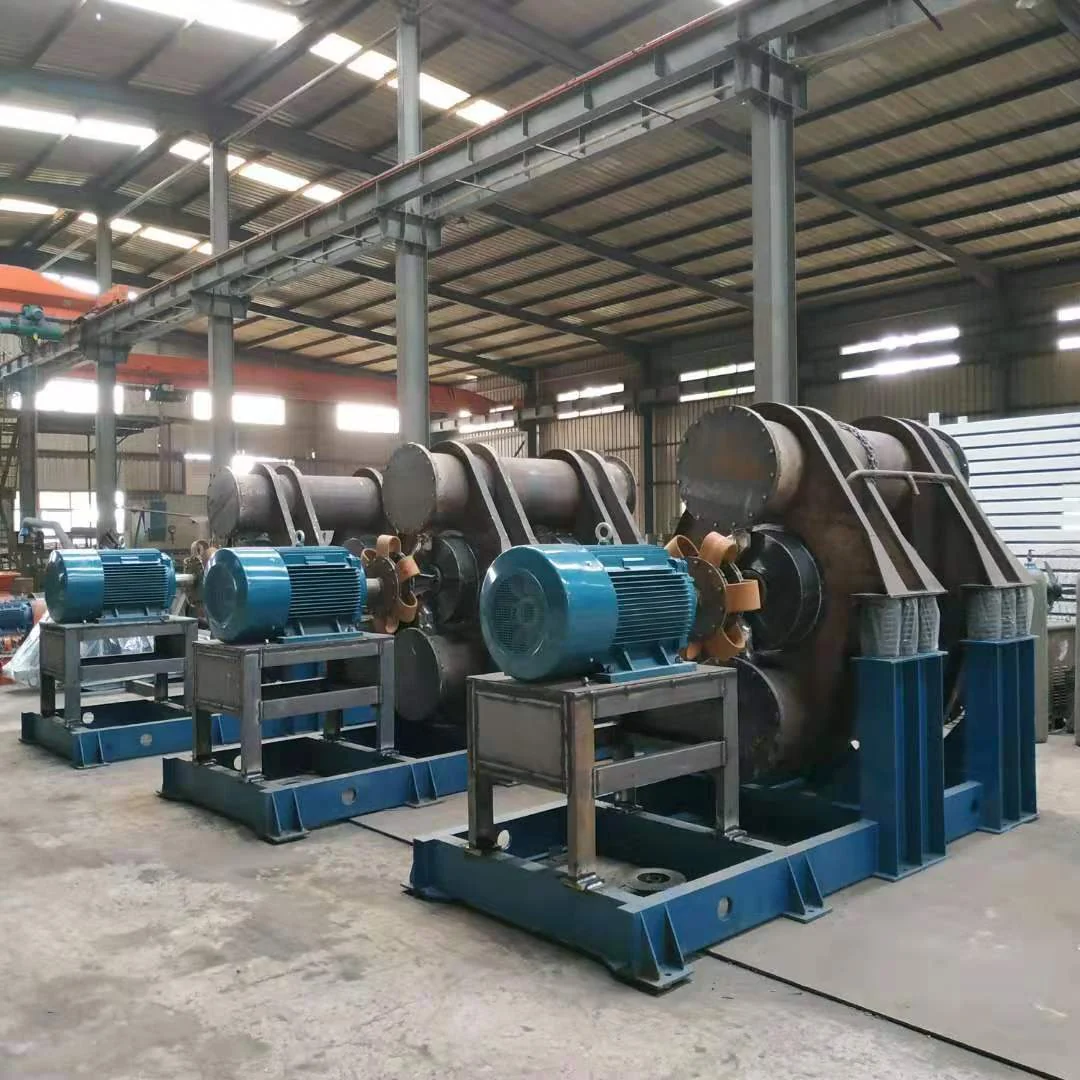

Machine, component and configuration views from our equipment range.
In Operation
Equipment footage showing the machine and its working arrangement.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Feed material and initial particle size
- Target fineness and hourly output
- Dry/wet operation and cooling requirements
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
