Zirconia media
Grinding beads refine tea particles through friction and impact.
Grinding EQUIPMENT

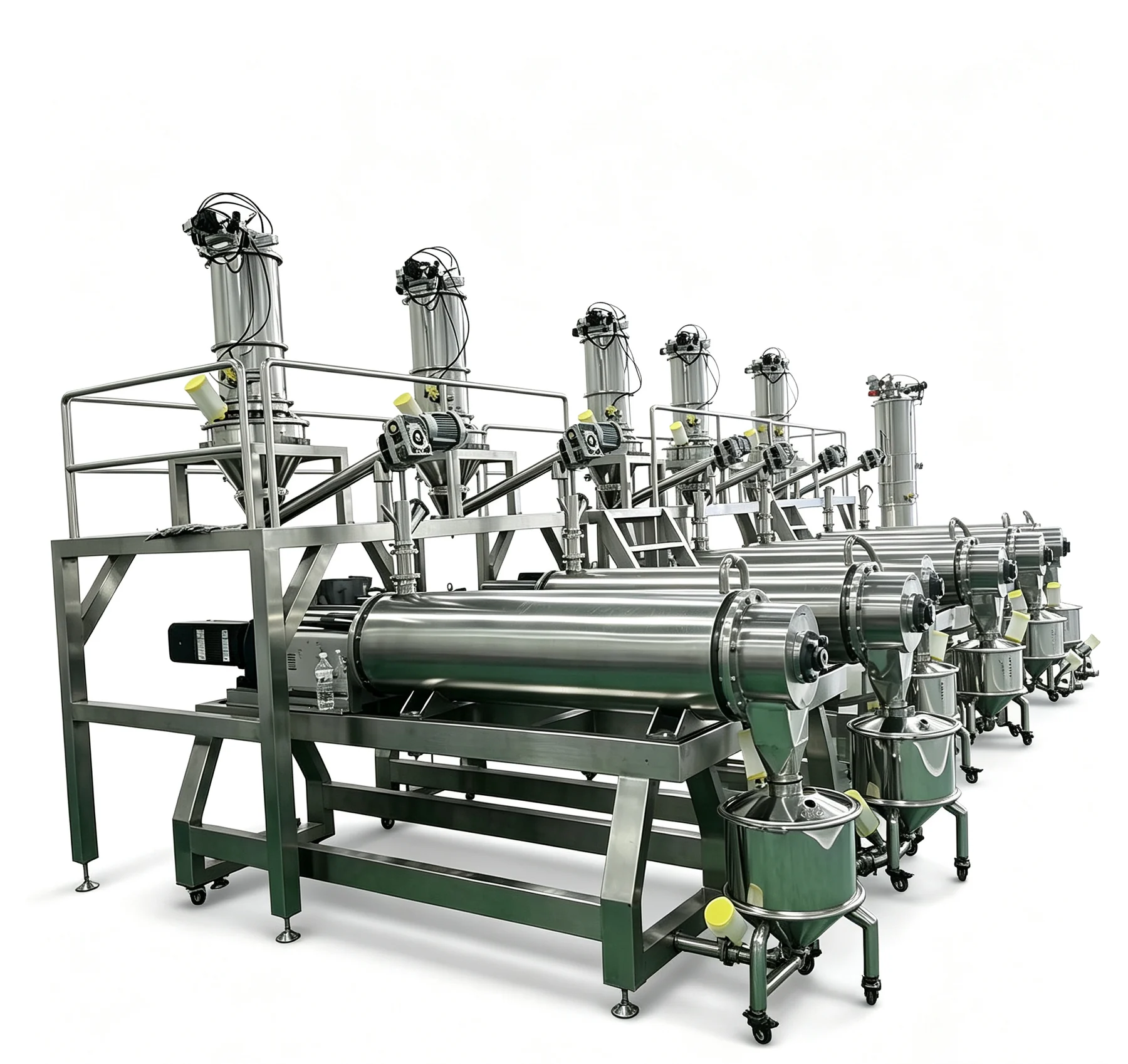

Matcha Ball Mill
Continuous tea-powder grinding with zirconia beads and adjustable speed.
- Machine body
- Stainless steel
- Grinding medium
- Zirconia beads
- Operation
- Continuous
DESIGNED FOR THE PROCESS
Overview
Continuous tea-powder grinding with zirconia beads and adjustable speed. We configure the equipment around your material, required output and installation conditions.
Applications
- Matcha
- Green tea powder
- Plant-based powders
Continuous feed
Coordinate the mill with a screw conveyor or vacuum feeder.
Cooling arrangement
Review cooling equipment and temperature requirements for the complete process.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Machine body | Stainless steel |
|---|---|
| Grinding medium | Zirconia beads |
| Operation | Continuous |
| Speed | Adjustable |
| Parameter | Supplied value |
|---|---|
| Power | 11 kW |
| Feed size | <10 mm |
| Output fineness | 700–2,500 mesh |
| Capacity | 8–20 kg/h |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK

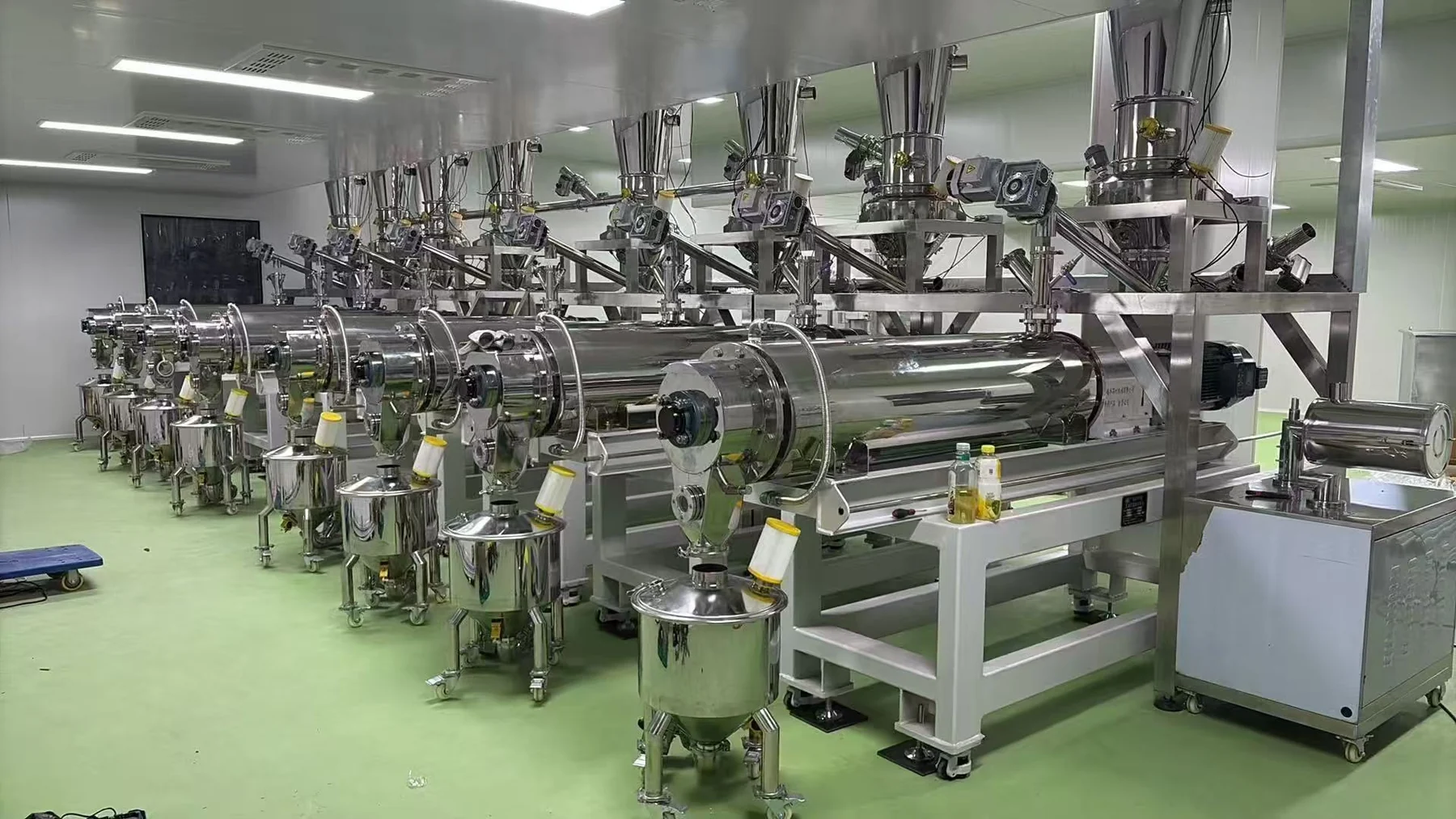

Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Feed material and initial particle size
- Target fineness and hourly output
- Dry/wet operation and cooling requirements
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
