Vibrating chamber
Grinding takes place inside a vibrating tube containing grinding media.
Grinding EQUIPMENT
Single-tube Vibrating Mill
Vibratory fine grinding for selected mineral, ceramic and industrial materials.
- Listed chamber volume
- 100–2,000 L
- Listed feed size
- 0–25 mm
- Listed discharge size
- 10–45 µm
DESIGNED FOR THE PROCESS
Overview
Vibratory fine grinding for selected mineral, ceramic and industrial materials. We configure the equipment around your material, required output and installation conditions.
Applications
- Minerals
- Ceramics
- Refractory materials
- Magnetic materials
Fine grinding
Select feed preparation and grinding conditions around the target particle size.
Process integration
Feeding and collection equipment can be arranged around the mill.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Listed chamber volume | 100–2,000 L |
|---|---|
| Listed feed size | 0–25 mm |
| Listed discharge size | 10–45 µm |
| Performance | Depends on material and grinding configuration |
| Model | Volume (L) | Listed power (kW) | Output (kg/h) |
|---|---|---|---|
| 100 | 100 | 2.2 | 50–150 |
| 400 | 400 | 7.5 | 50–300 |
| 800 | 800 | 12 | 50–1,000 |
| 1200 | 1,200 | 18.5 | 100–1,800 |
| 2000 | 2,000 | 25 | 100–3,000 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK

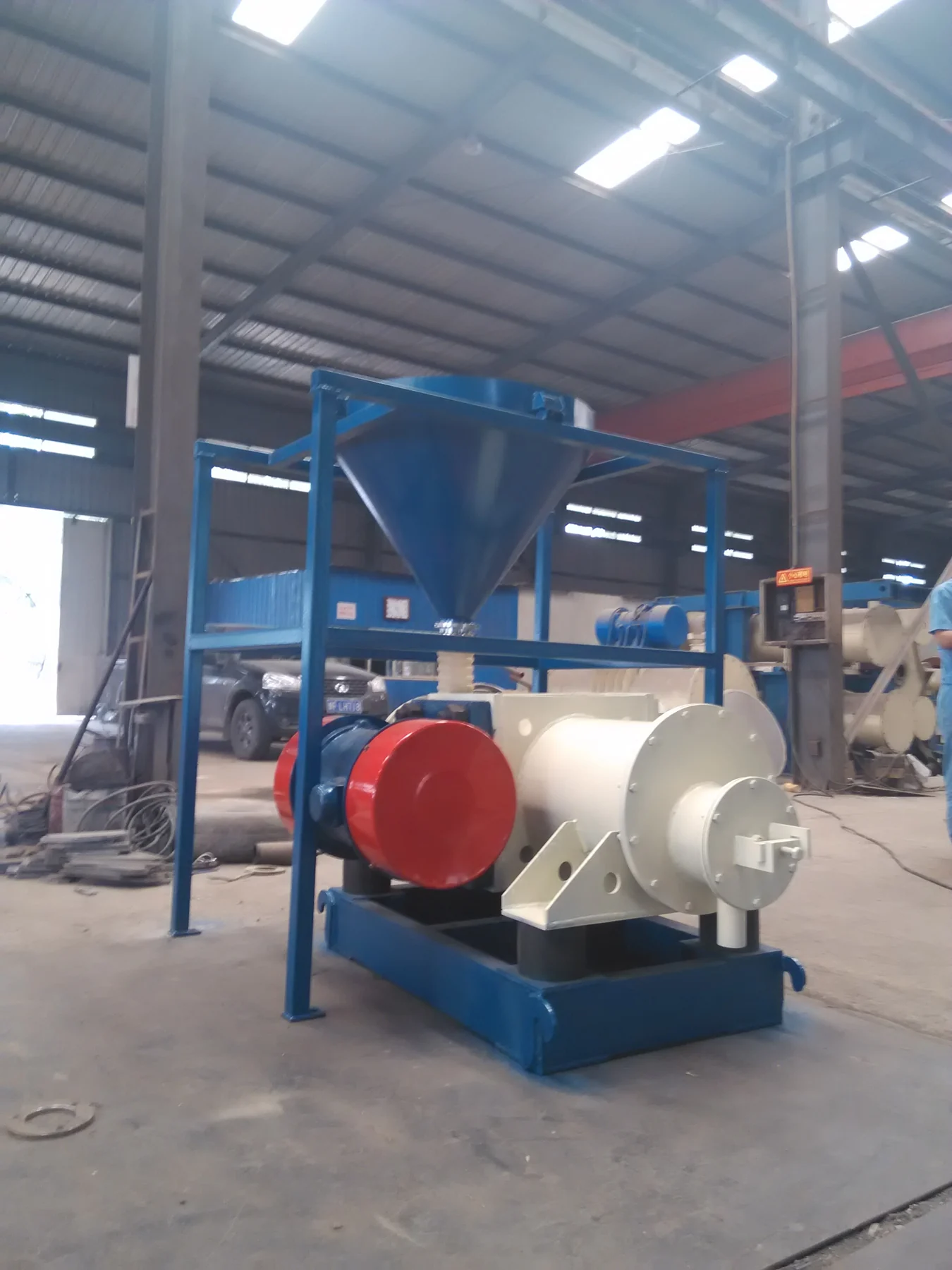

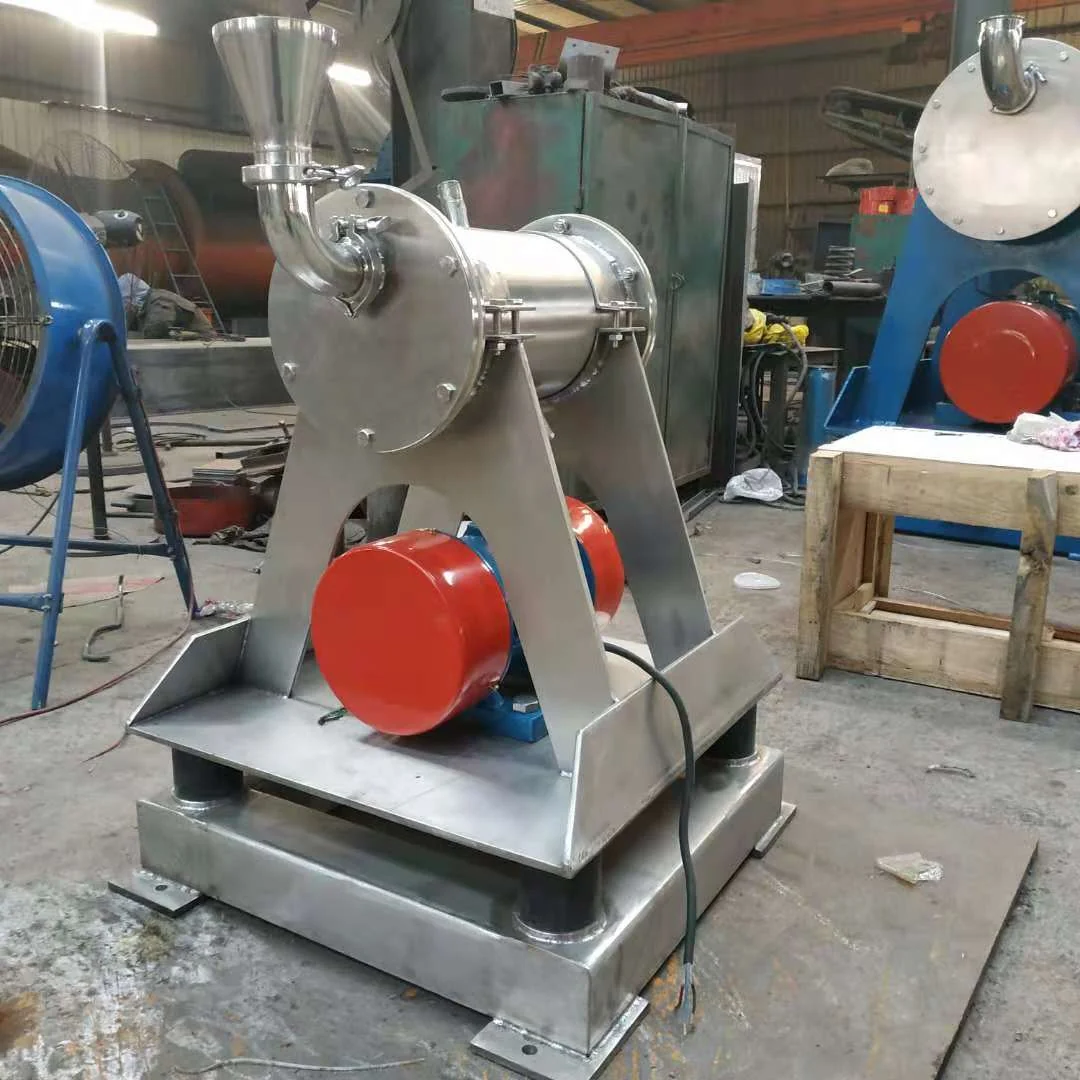

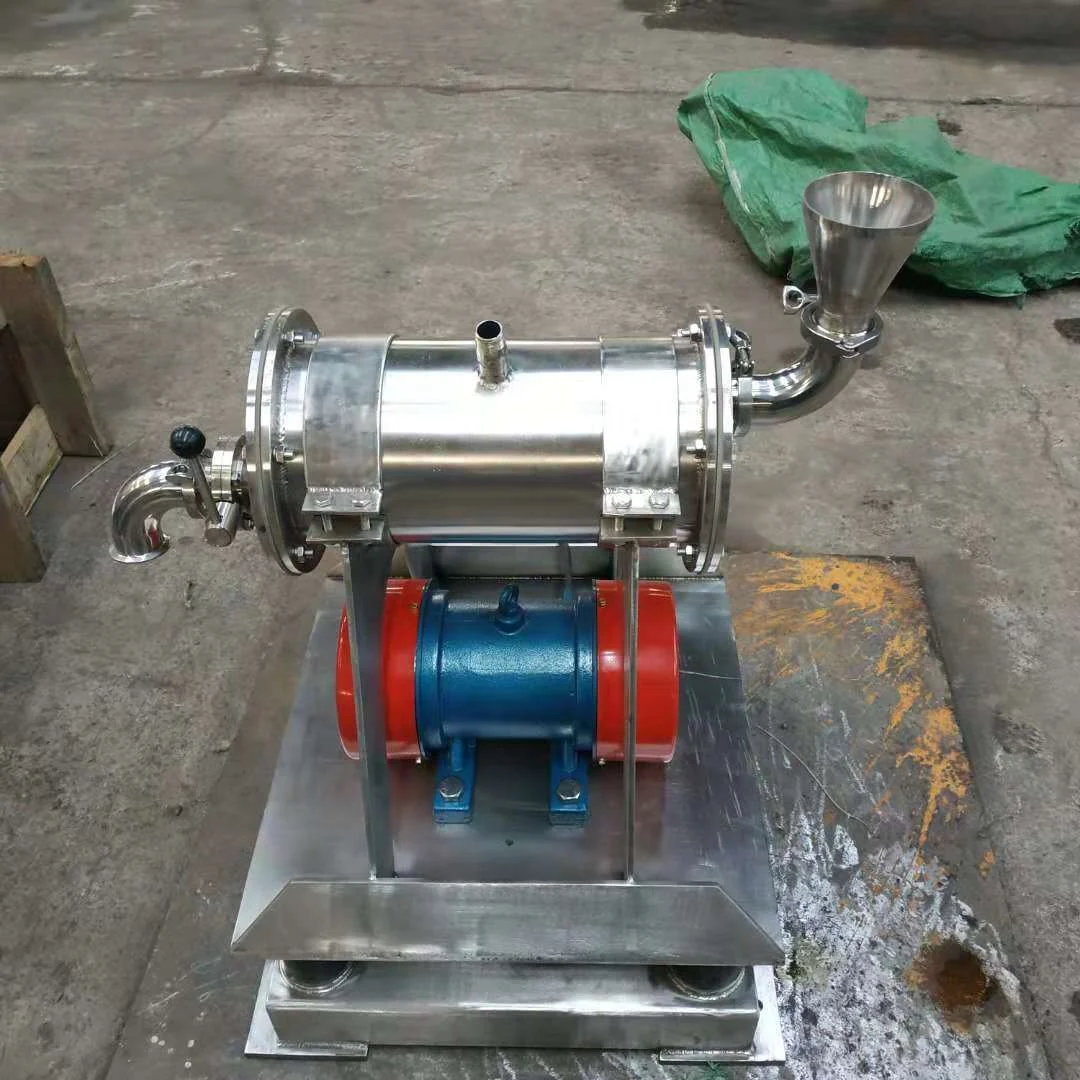

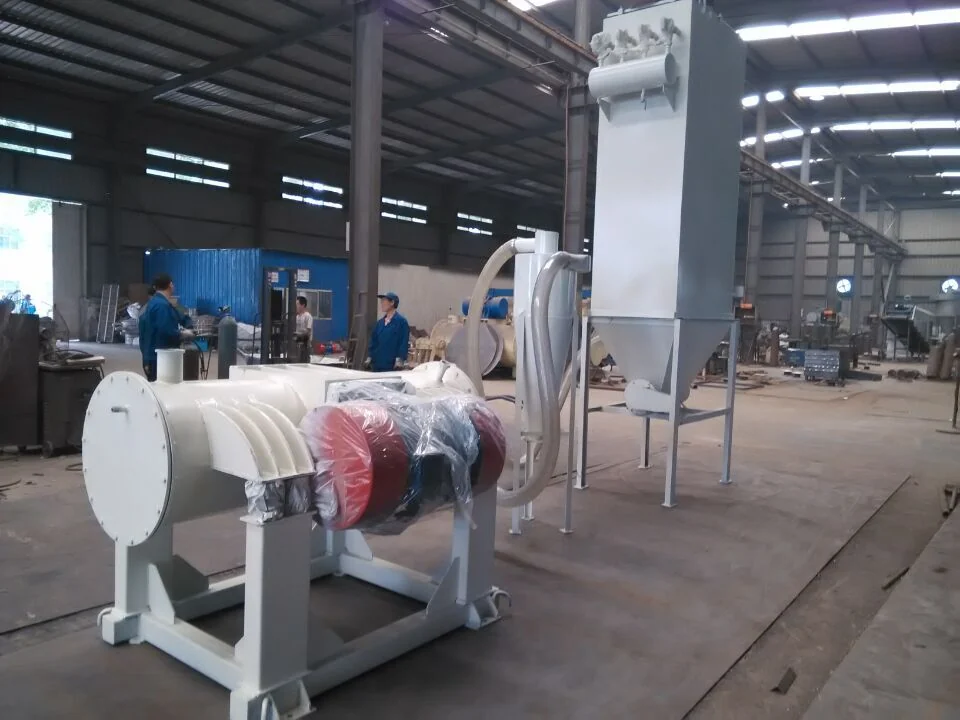

Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Feed material and initial particle size
- Target fineness and hourly output
- Dry/wet operation and cooling requirements
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
