Three-dimensional motion
Adjustable eccentric weights change how material travels across the screen.
Screening EQUIPMENT

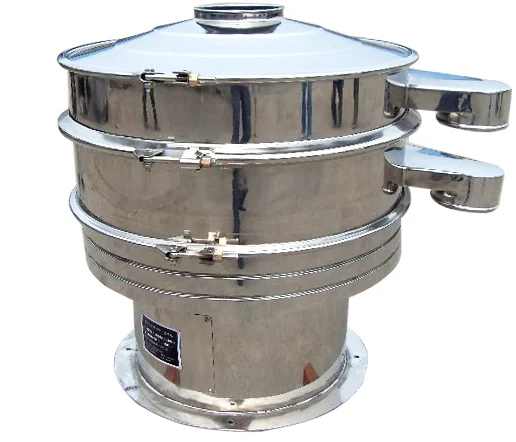

Rotary Vibrating Screen
Multi-deck separation for powders, granules and liquid filtration.
- Series
- XZS
- Nominal diameter
- 400–2,000 mm
- Screen decks
- 1–3
DESIGNED FOR THE PROCESS
Overview
Multi-deck separation for powders, granules and liquid filtration. We configure the equipment around your material, required output and installation conditions.
Applications
- Food ingredients
- Chemical powders
- Ceramics
- Abrasives
Multiple fractions
One to three screen decks separate material into the required grades.

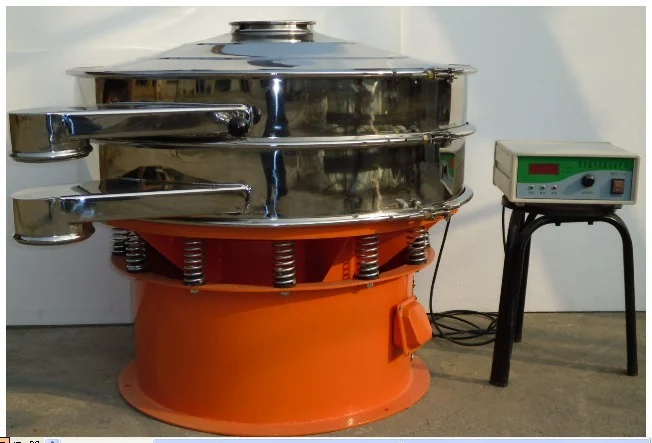

Ultrasonic option
An ultrasonic system can assist difficult fine-powder screening.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Series | XZS |
|---|---|
| Nominal diameter | 400–2,000 mm |
| Screen decks | 1–3 |
| Listed mesh range | 2–500 mesh |
| Drive speed | 1,500 rpm |
| Model | Diameter (mm) | Power (kW) |
|---|---|---|
| XZS-4 | 400 | 0.18 |
| XZS-6 | 600 | 0.25 |
| XZS-8 | 800 | 0.55 |
| XZS-10 | 1,000 | 0.75 |
| XZS-12 | 1,200 | 1.1 |
| XZS-15 | 1,500 | 2.2 |
| XZS-18 | 1,800 | 3 |
| XZS-20 | 2,000 | 4 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK
Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material, moisture and particle-size distribution
- Required separation size and number of fractions
- Hourly output and feeding arrangement
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
