Tumbling action
The screening movement follows the principle of manual sieving.
Screening EQUIPMENT
Tumbler Screen
Gentle tumbling motion for fine-powder classification and multiple fractions.
- Series
- YBS
- Screen decks
- 1–5
- Screen inclination
- 0–10°
DESIGNED FOR THE PROCESS
Overview
Gentle tumbling motion for fine-powder classification and multiple fractions. We configure the equipment around your material, required output and installation conditions.
Applications
- Sugar and salt
- Spices
- Chemical powders
- Plastics
Multi-deck arrangement
Up to five screen decks can be configured for different cuts.
Mesh cleaning
Ball, brush or ultrasonic cleaning options depend on the selected configuration.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Series | YBS |
|---|---|
| Screen decks | 1–5 |
| Screen inclination | 0–10° |
| Model selection | Based on material, cut size and throughput |
| Model | Nominal diameter (mm) | Listed screen area (m²) |
|---|---|---|
| YBS-1200 | 1,200 | 0.98 |
| YBS-1600 | 1,600 | 1.81 |
| YBS-2000 | 2,000 | 2.80 |
| YBS-2600 | 2,600 | 5.31 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK
Equipment Gallery

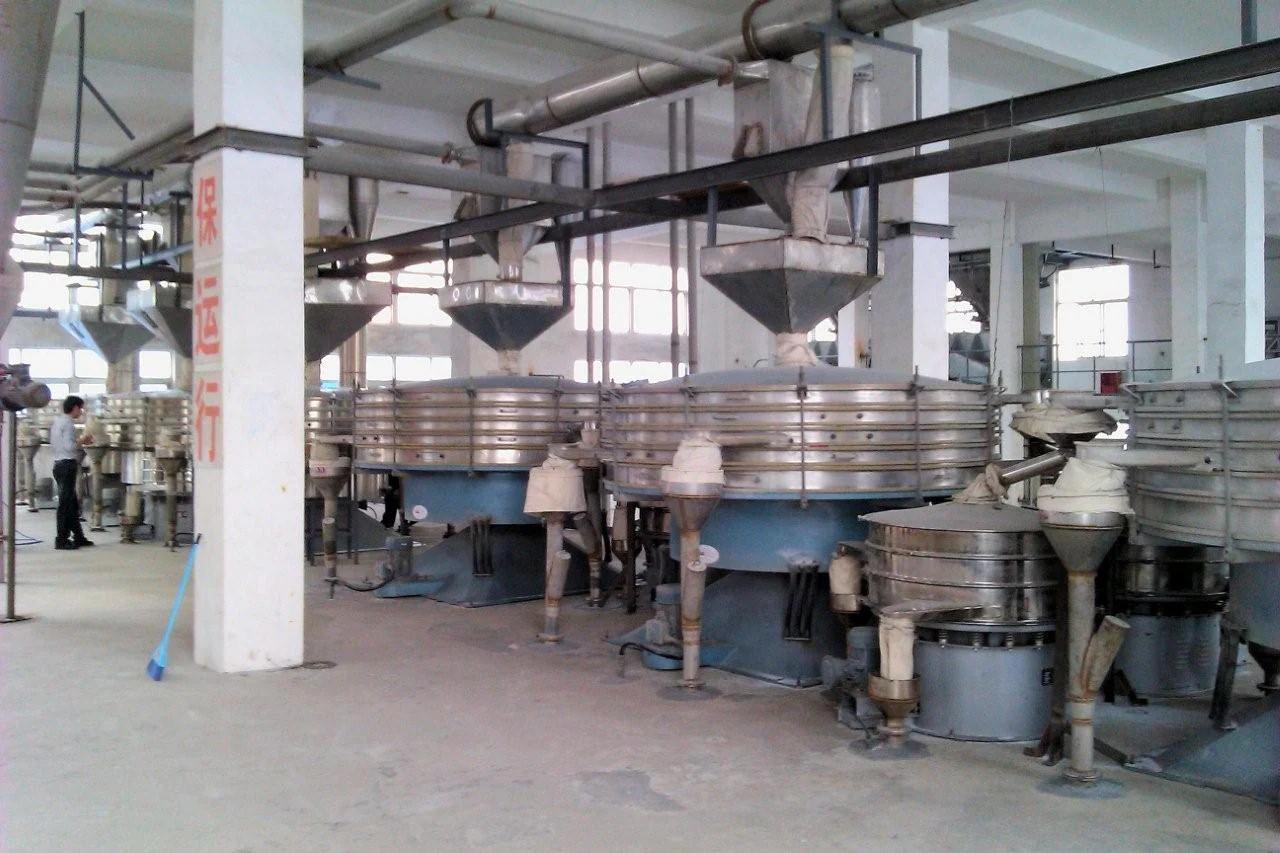

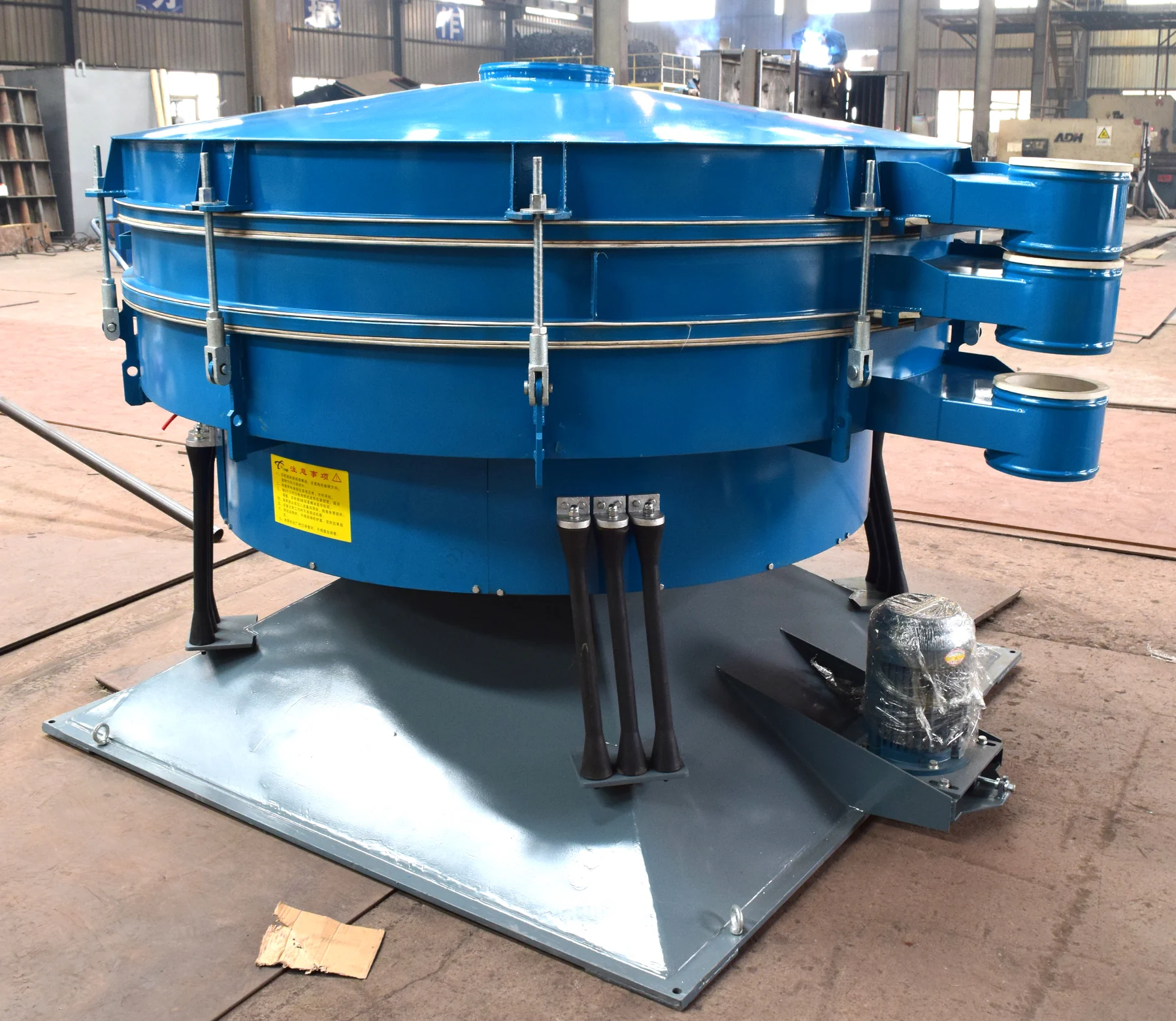

Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material, moisture and particle-size distribution
- Required separation size and number of fractions
- Hourly output and feeding arrangement
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
