Ultrasonic assistance
High-frequency vibration acts on the mesh to reduce blinding.
Screening EQUIPMENT

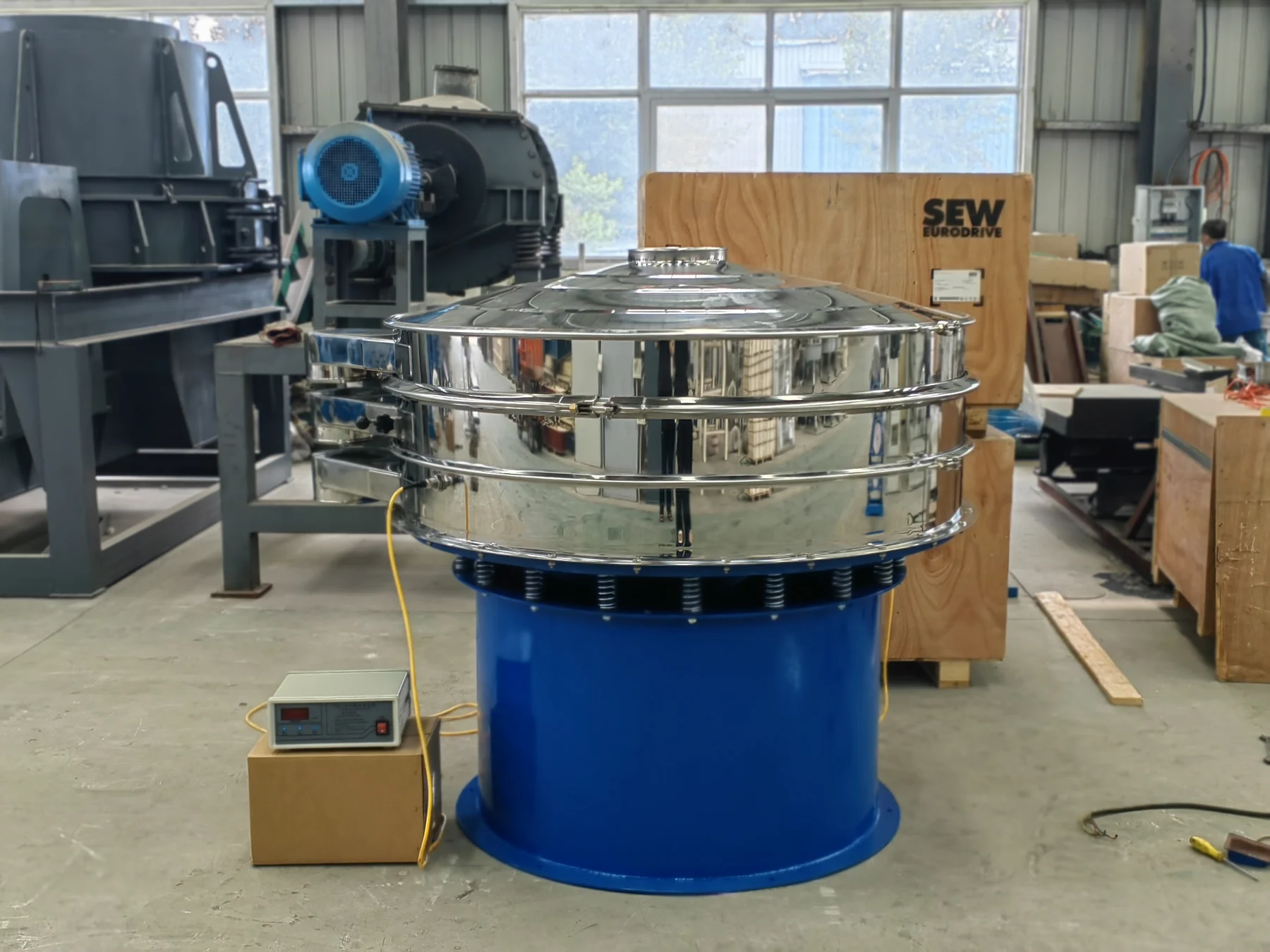

Ultrasonic Vibrating Screen
Ultrasonic mesh excitation assists the separation of fine and difficult powders.
- Screening action
- Rotary vibration with ultrasonic assistance

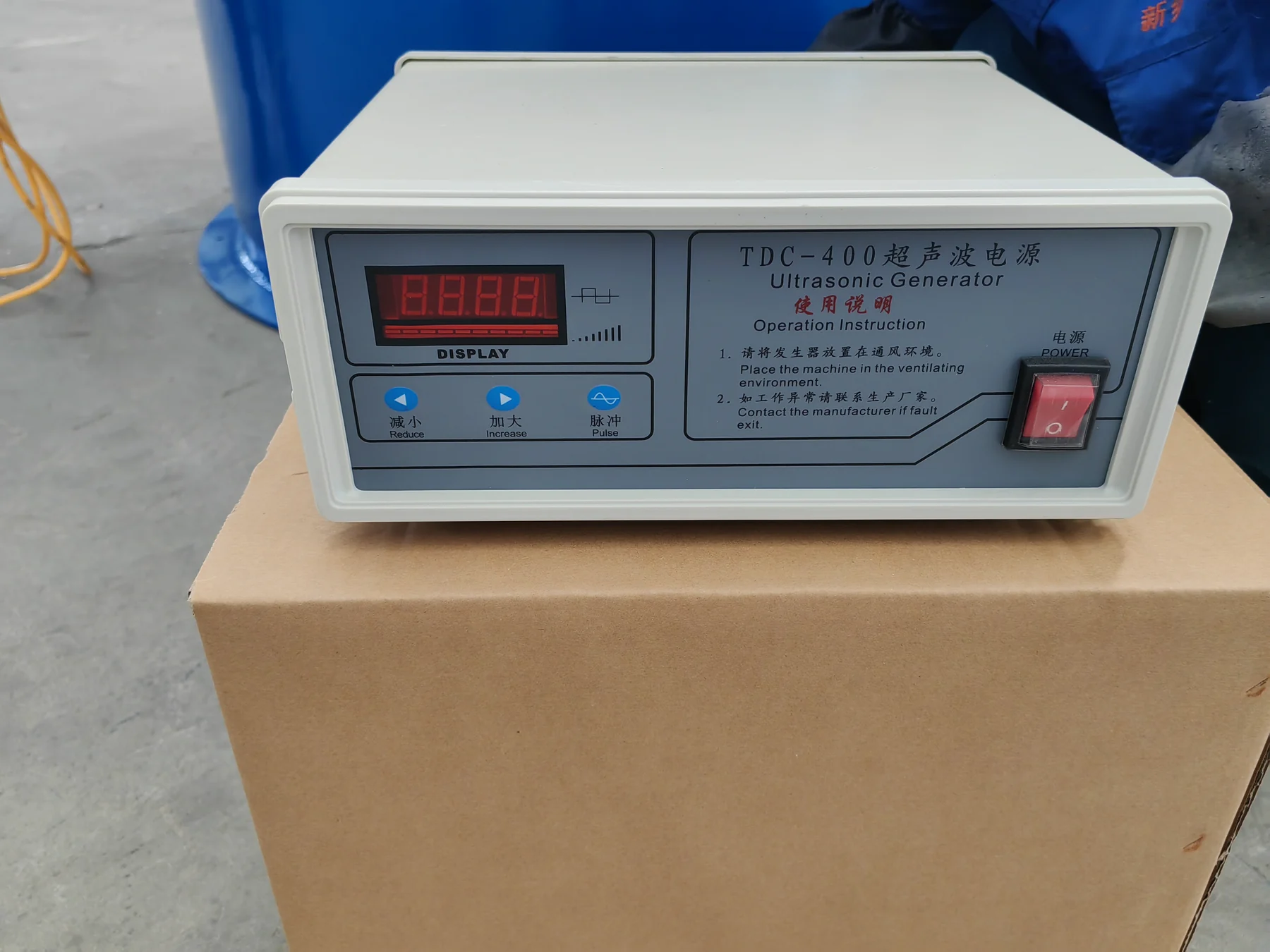

- Ultrasonic frequency
- 38 kHz in the supplied rotary-screen sheet
- Decks and mesh
- Selected for the material
DESIGNED FOR THE PROCESS
Overview
Ultrasonic mesh excitation assists the separation of fine and difficult powders. We configure the equipment around your material, required output and installation conditions.
Applications
- Matcha powder
- Food additives
- Metal powders
- Ceramic powders
Screen access

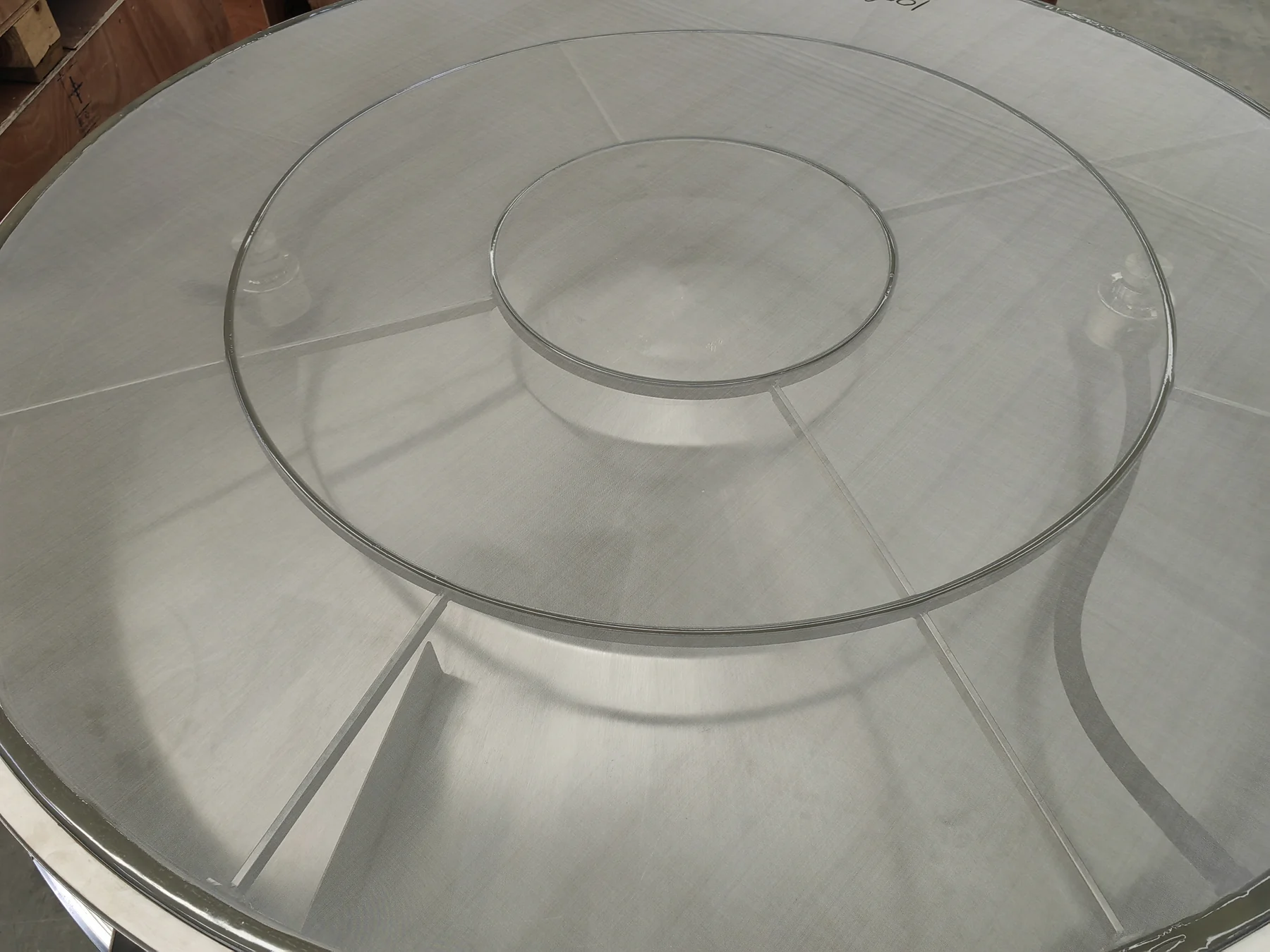

Removable decks provide access to the mesh and support rings.
Process integration
Connect vacuum feeding and collection equipment around the screen.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Screening action | Rotary vibration with ultrasonic assistance |
|---|---|
| Ultrasonic frequency | 38 kHz in the supplied rotary-screen sheet |
| Decks and mesh | Selected for the material |
| Construction | Confirm contact material and finish |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK
Equipment Gallery
Machine, component and configuration views from our equipment range.
In Operation
Equipment footage showing the machine and its working arrangement.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material, moisture and particle-size distribution
- Required separation size and number of fractions
- Hourly output and feeding arrangement
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
