Vacuum Feeder
ZKS Series Vacuum Feeder for Powder and Granules The ZKS Series Vacuum Feeder is designed for automatic powder and granule transfer in industrial production lines. It conveys materials to mixers, screening machines, packaging equipment, and other receiving systems using vacuum technology. Key Features Automatic conveying of powders and granules Compressed-air pulse filter cleaning Optional automatic feeding with level control Multiple filter materials and vacuum source options Configurable for different materials and production requirements Technical Highlights Models: ZKS-1 to ZKS-20-5 Listed conveying capacity: 400–6,000 kg/h, depending on model and operating conditions Motor power: 1.5–11 kW Compressed air pressure: 0.4–0.6 MPa Need a Suitable Vacuum Feeding Solution? Tell us your material type, required capacity, conveying distance, and receiving equipment. Our team can help you evaluate a suitable model and configuration.
- Series
- ZKS
- Vacuum source
- Vortex vacuum pump / Roots blower / Other suitable configuration
- Compressed air pressure
- 0.4–0.6 MPa
DESIGNED FOR THE PROCESS
Overview
ZKS Series Vacuum Feeder for Powder and Granules The ZKS Series Vacuum Feeder is designed for automatic powder and granule transfer in industrial production lines. It conveys materials to mixers, screening machines, packaging equipment, and other receiving systems using vacuum technology. Key Features Automatic conveying of powders and granules Compressed-air pulse filter cleaning Optional automatic feeding with level control Multiple filter materials and vacuum source options Configurable for different materials and production requirements Technical Highlights Models: ZKS-1 to ZKS-20-5 Listed conveying capacity: 400–6,000 kg/h, depending on model and operating conditions Motor power: 1.5–11 kW Compressed air pressure: 0.4–0.6 MPa Need a Suitable Vacuum Feeding Solution? Tell us your material type, required capacity, conveying distance, and receiving equipment. Our team can help you evaluate a suitable model and configuration. We configure the equipment around your material, required output and installation conditions.

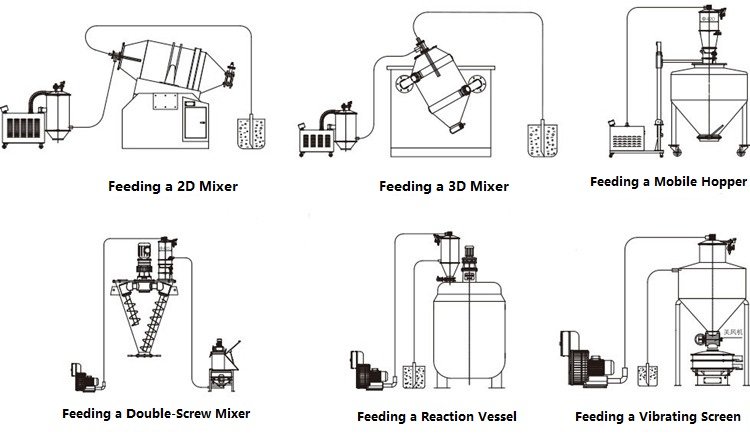

Applications
- Mixer loading
- Screening machine feeding
- Packaging and filling lines
- Tablet press feeding
- Production hopper feeding
- Powder transfer between process equipment
- Automatic material replenishment
Negative-pressure material transfer to receiving equipment
Compressed-air pulse filter cleaning during discharge
Optional automatic feeding with level control
Vortex vacuum pump or Roots blower configurations
Filter options: polyester membrane-coated, PE, 316L stainless steel, or titanium
Customizable configuration according to material properties and conveying requirements
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Series | ZKS |
|---|---|
| Vacuum source | Vortex vacuum pump / Roots blower / Other suitable configuration |
| Compressed air pressure | 0.4–0.6 MPa |
| Filter options | Polyester membrane-coated / PE / 316L stainless steel / Titanium |
| Contact material | Stainless steel or other specified material, subject to confirmation |
| Conveying capacity | Model-dependent; see technical specifications |
| Conveying distance | Application-dependent |
| Installation | Fixed mounting or compatible lifting trolley configuration |
| Control options | Automatic cycle control / Optional receiving-hopper level control |
| Selection factors | Material properties, bulk density, conveying distance, lifting height, and required capacity |
| Model | Listed capacity (kg/h) | Motor (kW) |
|---|---|---|
| ZKS-1 | 400 | 1.5 |
| ZKS-2 | 600 | 2.2 |
| ZKS-3 | 1,200 | 3.0 |
| ZKS-4 | 2,500 | 5.5 |
| ZKS-6 | 3,200 | 5.5 |
| ZKS-7 | 6,000 | 7.5 |
| ZKS-10-6 | 6,000 | 7.5 |
| ZKS-20-5 | 5,000 | 11.0 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK
Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material density and flow behaviour
- Required feed rate and control method
- Pickup point, receiving equipment and available space
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
