Flow assistance
Vibration loosens material around the bin outlet.
Feeding EQUIPMENT
Vibrating Hopper
Vibratory hopper discharge to help reduce bridging and material blockage.
- Listed model sizes
- 600–2,200
- Listed amplitude
- 1–4 mm, depending on model
- Listed supply
- 380 V
DESIGNED FOR THE PROCESS
Overview
Vibratory hopper discharge to help reduce bridging and material blockage. We configure the equipment around your material, required output and installation conditions.
Applications
- Silo discharge
- Powder storage
- Bulk feeding
Bin connection
A fixed upper section connects the discharger to the storage hopper.
Isolation
Damping components separate the vibrating assembly from the support.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Listed model sizes | 600–2,200 |
|---|---|
| Listed amplitude | 1–4 mm, depending on model |
| Listed supply | 380 V |
| Selection | Outlet geometry and material flow behaviour |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK

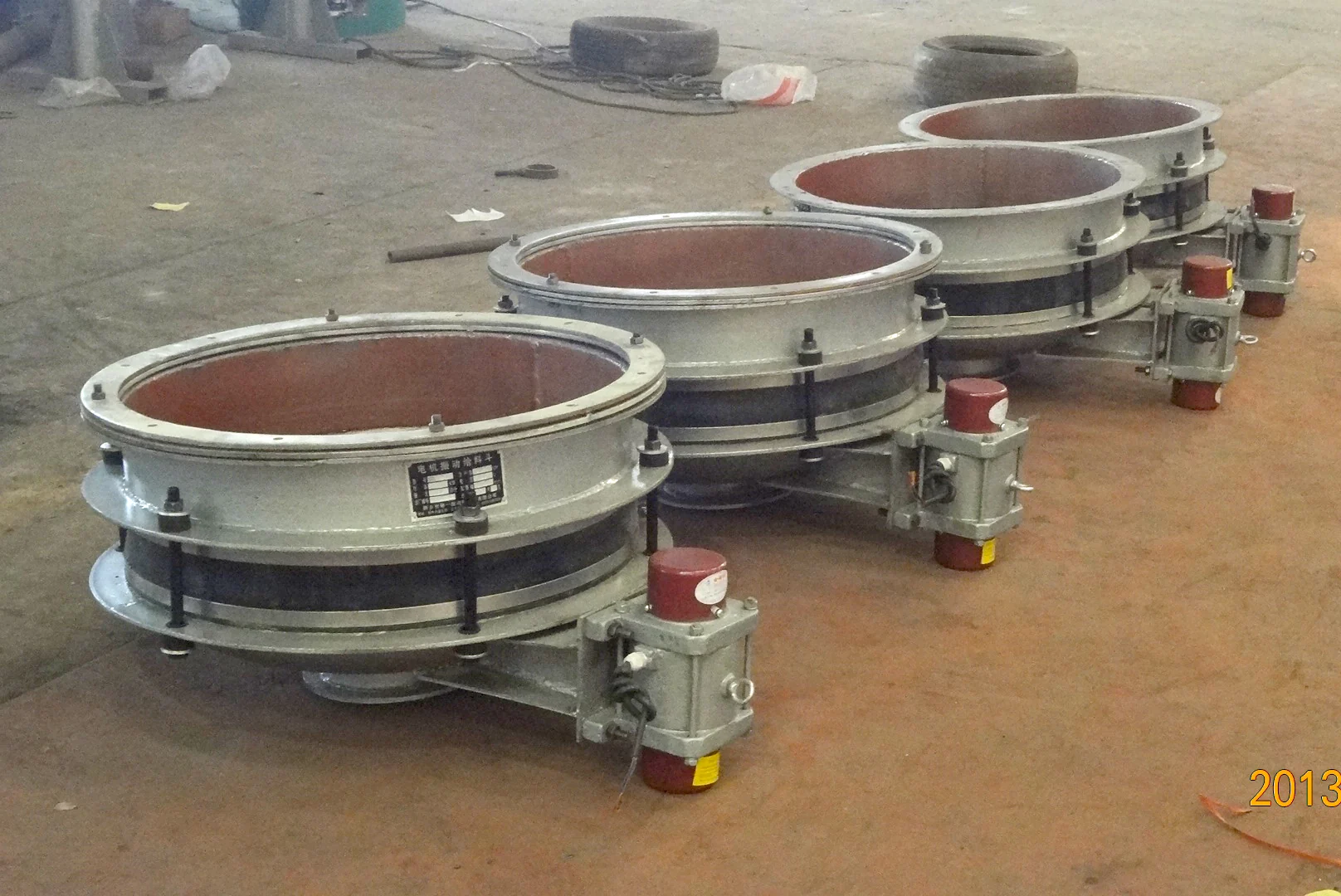

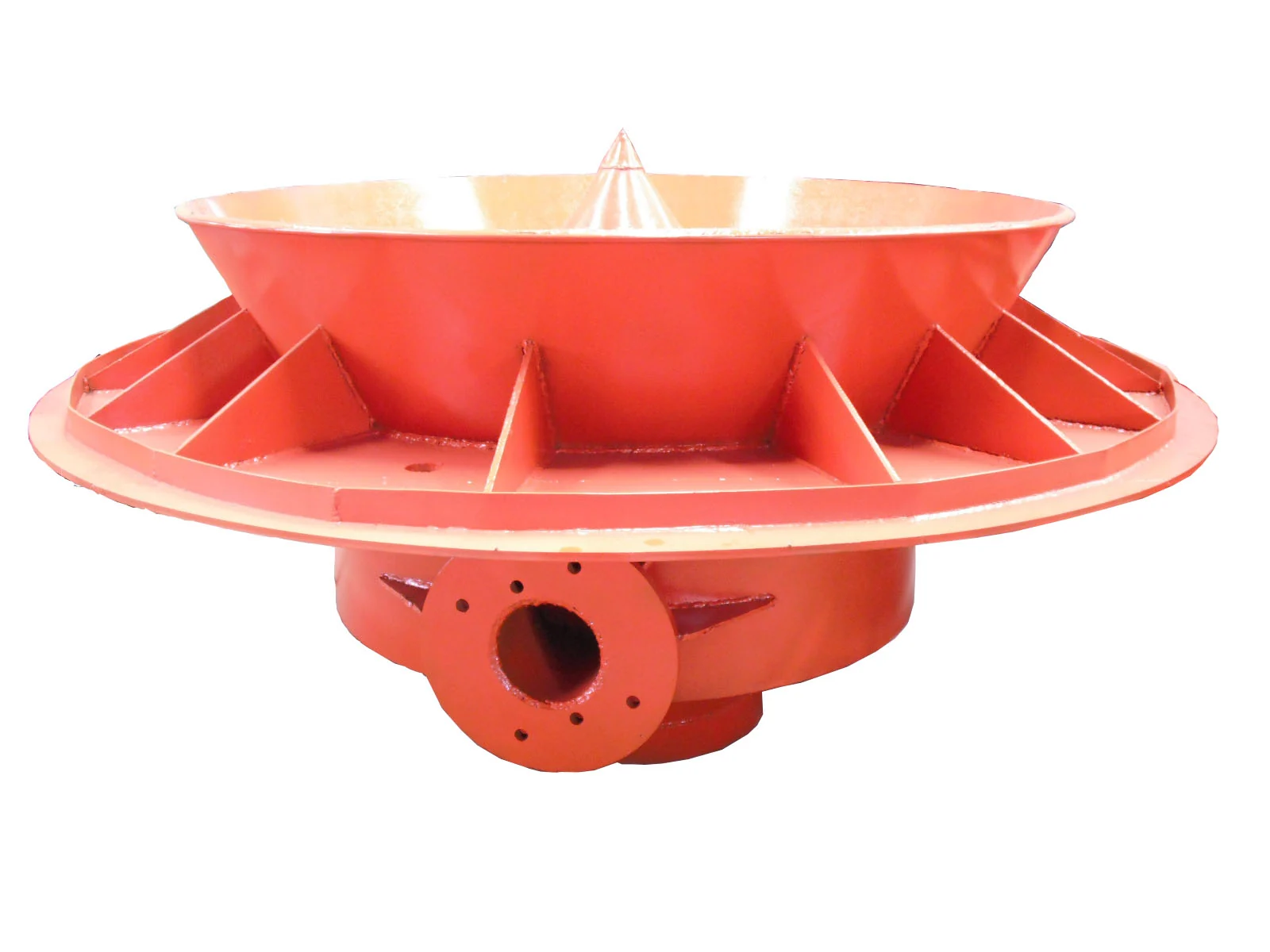

Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material density and flow behaviour
- Required feed rate and control method
- Pickup point, receiving equipment and available space
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
