TD belt series
Belt-mounted buckets suit selected powders, granules and small lumps.
Elevating EQUIPMENT
TD-TH Bucket Elevator
Vertical bulk-material lifting with belt or round-link-chain traction.
- Series
- TD belt / TH round-link chain
- TD temperature guidance
- Up to 60°C in the supplied description
- TH temperature guidance
- Below 250°C
DESIGNED FOR THE PROCESS
Overview
Vertical bulk-material lifting with belt or round-link-chain traction. We configure the equipment around your material, required output and installation conditions.
Applications
- Grain
- Coal
- Cement
- Sand
- Fertilizer

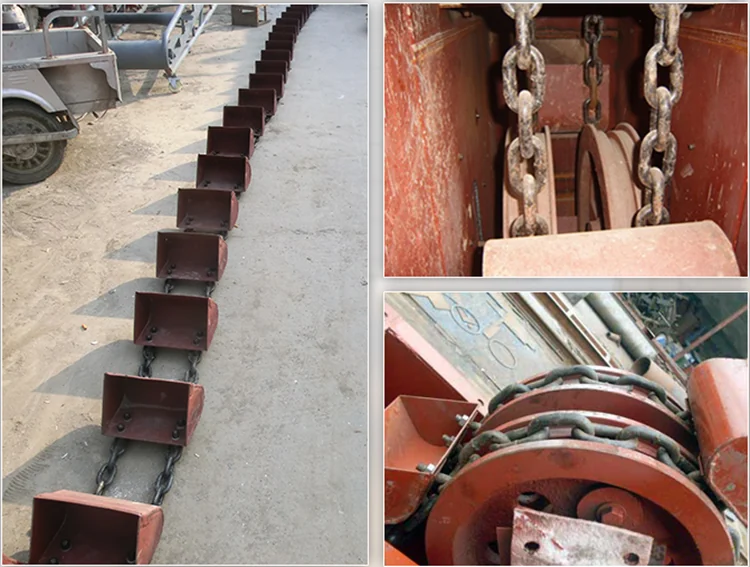

TH chain series
Round-link-chain traction provides another option for vertical handling.
Bucket selection
Bucket style and discharge arrangement depend on material behaviour.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Series | TD belt / TH round-link chain |
|---|---|
| TD temperature guidance | Up to 60°C in the supplied description |
| TH temperature guidance | Below 250°C |
| Final sizing | Lift height, material density and throughput |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK
Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material size, density and abrasiveness
- Lifting height and required throughput
- Inlet/outlet positions and available headroom
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
