Twin vibration motors
The combined vibration moves material upwards along the spiral.
Elevating EQUIPMENT

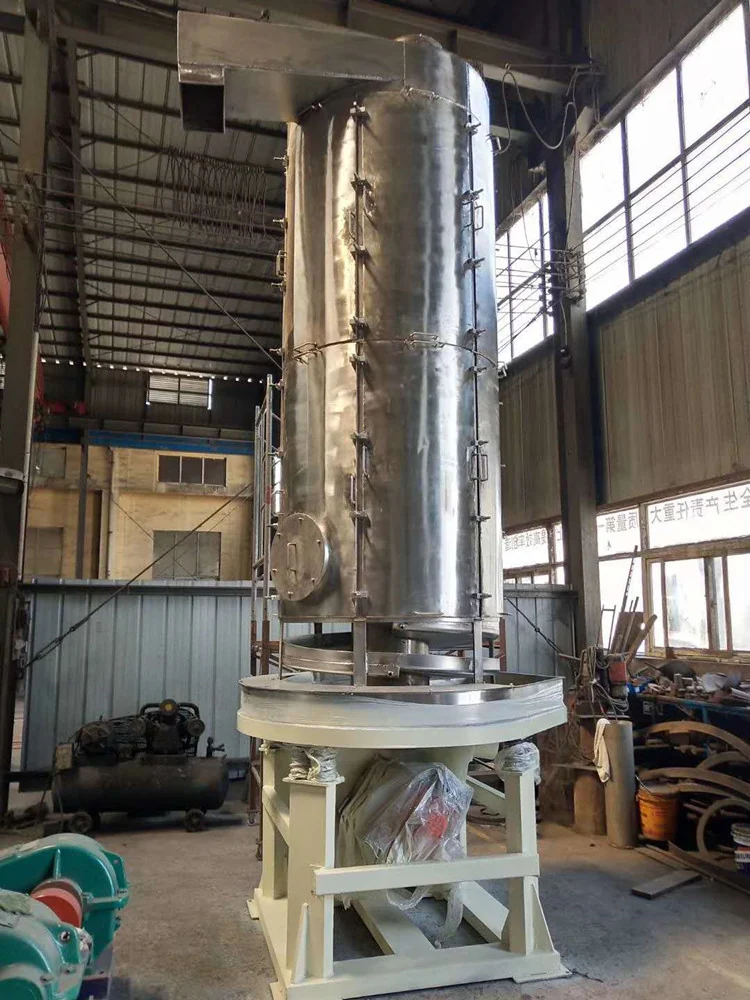

Spiral Vibrating Elevator
Vertical material transport along a vibrating spiral trough.
- Material size guidance
- Below 50 mm
- Listed frequency
- 960 rpm
- Listed height range
- Up to 8 m across supplied models
DESIGNED FOR THE PROCESS
Overview
Vertical material transport along a vibrating spiral trough. We configure the equipment around your material, required output and installation conditions.
Applications
- Powders
- Granules
- Grain
- Chemical solids
Trough options
Open and enclosed configurations are available.

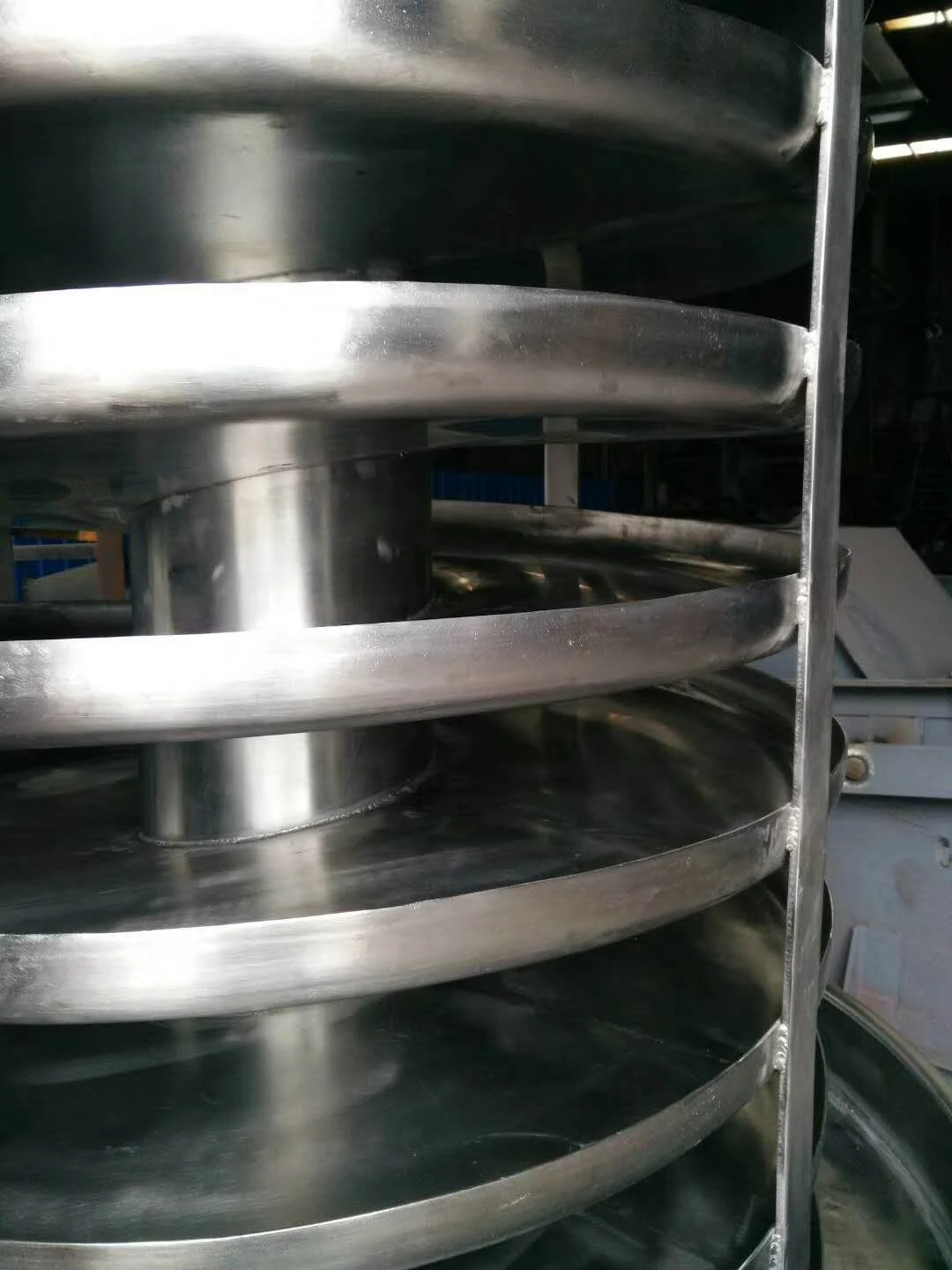

Compact route
A vertical spiral connects different process heights.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Material size guidance | Below 50 mm |
|---|---|
| Listed frequency | 960 rpm |
| Listed height range | Up to 8 m across supplied models |
| Model | Listed capacity (t/h) | Maximum height (m) | Power (kW) |
|---|---|---|---|
| 300 | ~1 | 2 | 2 × 0.4 |
| 500 | ~2 | 3 | 2 × 0.75 |
| 600 | ~3 | 4 | 2 × 1.5 |
| 800 | ~4 | 4.5 | 2 × 2.2 |
| 900 | ~3.5 | 6 | 2 × 3 |
| 950 | ~4 | 8 | 2 × 3.7 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
