Material options
Carbon steel, SUS304 and SUS316 construction can be selected.
Conveying EQUIPMENT
Screw Conveyor
A rotating screw transfers powder and bulk material within a trough or tube.
- Listed conveying distance
- 1–30 m
- Screw diameters
- 100–1,250 mm
- Speed
- Selected for material and capacity
DESIGNED FOR THE PROCESS
Overview
A rotating screw transfers powder and bulk material within a trough or tube. We configure the equipment around your material, required output and installation conditions.
Applications
- Powder transfer
- Grain
- Chemical ingredients
- Grinding feed
Process connections
Configure inlet, outlet and conveying length for the production line.
Screw selection
Diameter, pitch and speed depend on the material and required output.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Listed conveying distance | 1–30 m |
|---|---|
| Screw diameters | 100–1,250 mm |
| Speed | Selected for material and capacity |
| Diameter (mm) | Pitch (mm) | Listed capacity (m³/h) |
|---|---|---|
| 100 | 100 | 1–2 |
| 200 | 200 | 6–10 |
| 315 | 315 | 18–30 |
| 500 | 400 | 55–70 |
| 800 | 500 | 125–180 |
| 1250 | 630 | 260–305 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK
Equipment Gallery

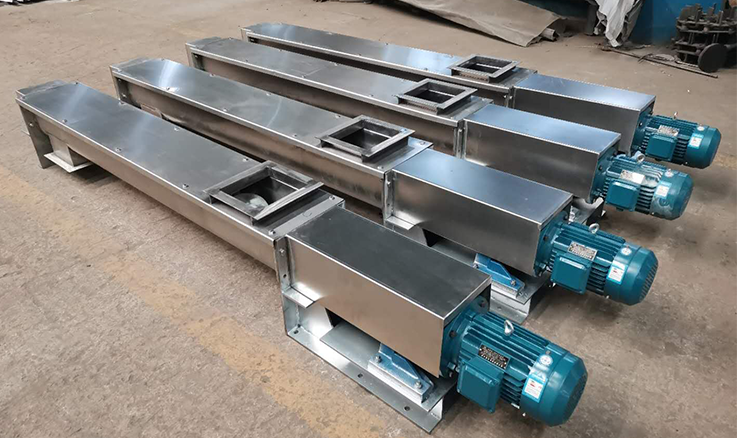

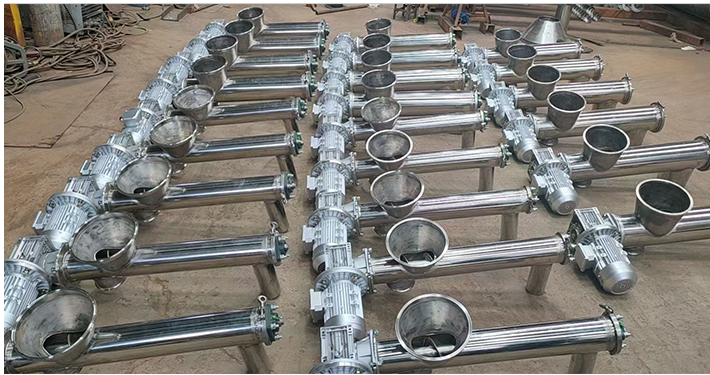

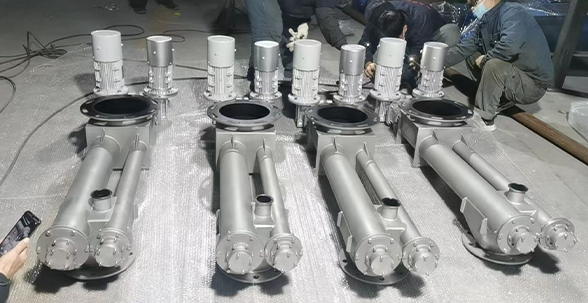

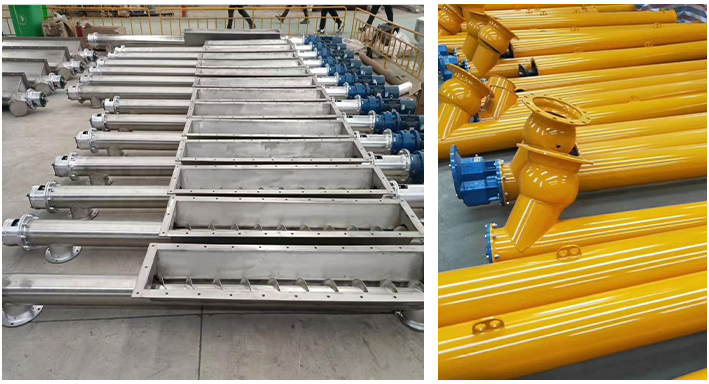

Machine, component and configuration views from our equipment range.
In Operation

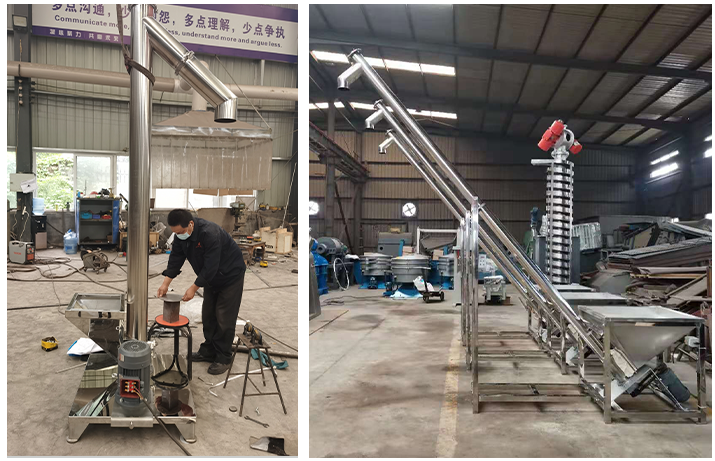

Equipment footage showing the machine and its working arrangement.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material, temperature and bulk density
- Route length, inclination and transfer points
- Required throughput and upstream/downstream connections
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
Talk to Bochen
Request a Quote
Your material, target capacity and operating conditions help us recommend the right equipment.
