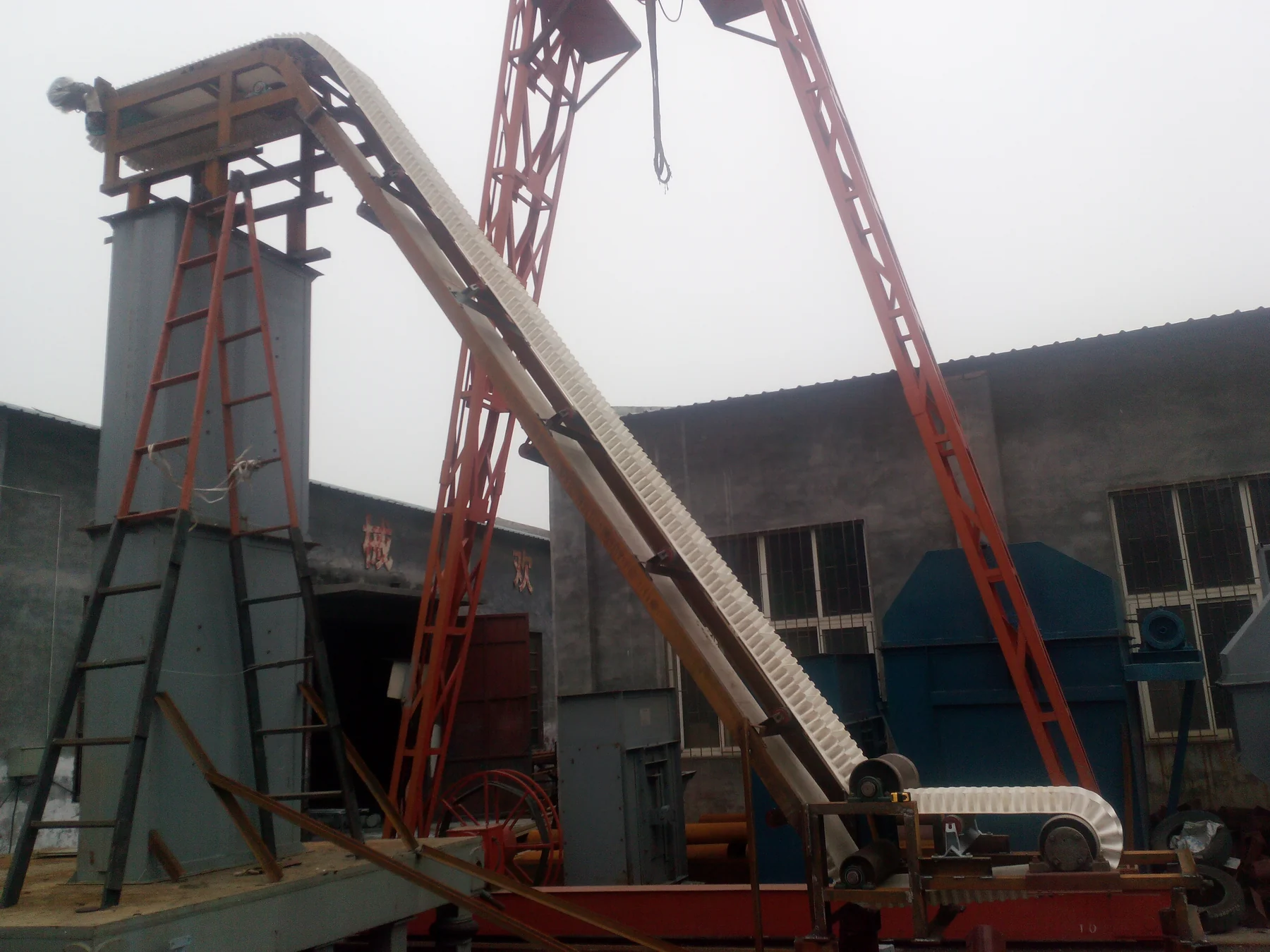

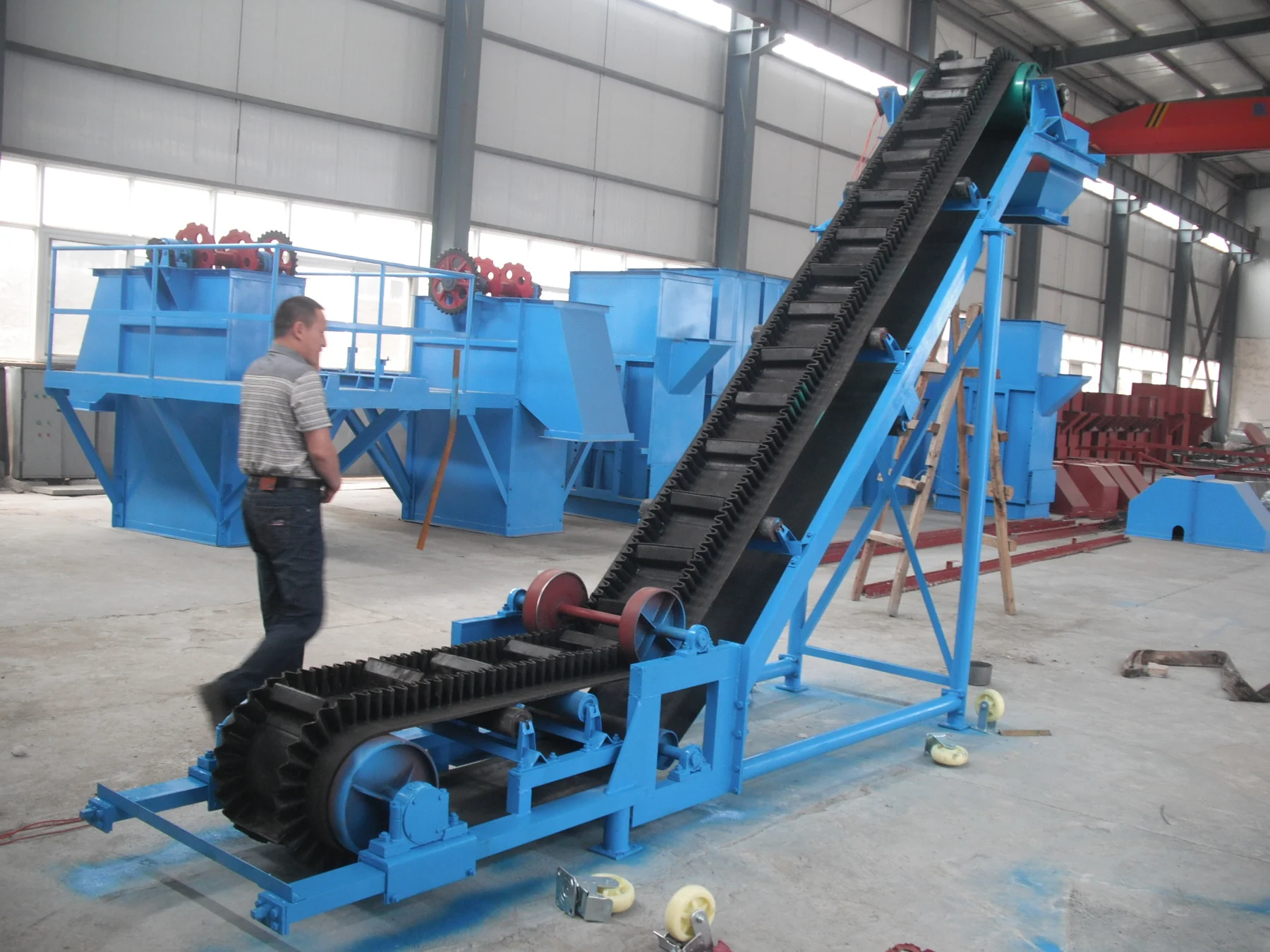

Steep-incline layout
Sidewalls and cleats retain material as the belt rises.
Conveying EQUIPMENT
Sidewall Belt Conveyor
Cleated sidewall belt transport for steep inclines and elevation changes.
- Belt type
- Corrugated sidewall with cleats
- Inclination
- Application-specific, within the supplied 0–90° range
- Sizing
- Confirm lift, bulk density and hourly output
DESIGNED FOR THE PROCESS
Overview
Cleated sidewall belt transport for steep inclines and elevation changes. We configure the equipment around your material, required output and installation conditions.
Applications
- Bulk powders
- Granules
- Grain
- Mineral handling
Route planning
Horizontal and inclined sections are configured to connect loading and discharge.

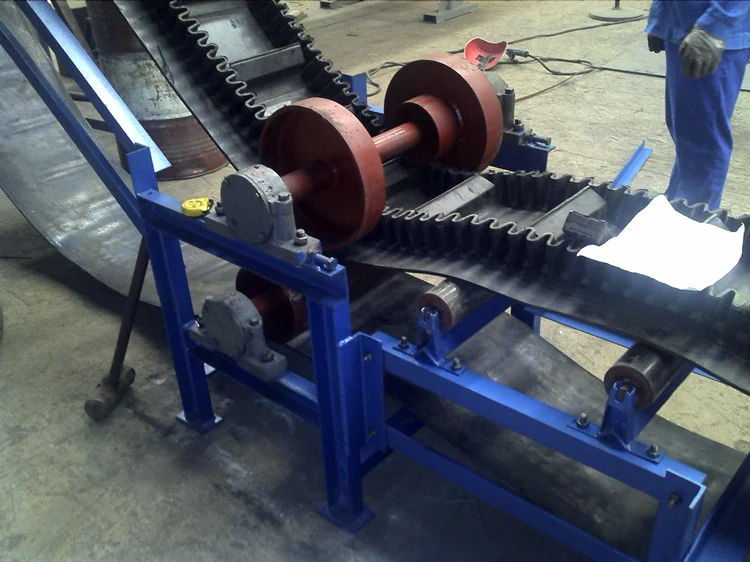

Belt support
Rollers and the drive arrangement are selected for the load.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Belt type | Corrugated sidewall with cleats |
|---|---|
| Inclination | Application-specific, within the supplied 0–90° range |
| Sizing | Confirm lift, bulk density and hourly output |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK
Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material, temperature and bulk density
- Route length, inclination and transfer points
- Required throughput and upstream/downstream connections
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
Talk to Bochen
Request a Quote
Your material, target capacity and operating conditions help us recommend the right equipment.
