Enclosed transfer
Discs attached to a chain move powder and small granules along the tube.
Conveying EQUIPMENT
Tube Chain Conveyor
A mechanical chain-and-disc system carries bulk material through enclosed tubing.
- Listed models
- 89 / 108 / 127 / 159 / 180 / 219
- Route
- Configured to site layout
- Conveying distance
- Up to 60 m in the supplied range
DESIGNED FOR THE PROCESS
Overview
A mechanical chain-and-disc system carries bulk material through enclosed tubing. We configure the equipment around your material, required output and installation conditions.
Applications
- Starch
- Grain powders
- Chemical powders
- Bulk granules
Flexible routing
Inclined, L-shaped and Z-shaped layouts connect process equipment.
Multiple connections
Plan loading and discharge positions around the production layout.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Listed models | 89 / 108 / 127 / 159 / 180 / 219 |
|---|---|
| Route | Configured to site layout |
| Conveying distance | Up to 60 m in the supplied range |
| Model | Capacity (t/h) | Power (kW) |
|---|---|---|
| GL89 | 1–3 | 0.18–3 |
| GL108 | 2–7 | 0.55–4 |
| GL127 | 3–10 | 1.1–5.5 |
| GL159 | 8–25 | 2.2–7.5 |
| GL180 | 15–50 | 3–15 |
| GL219 | 30–75 | 5.5–18.5 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK

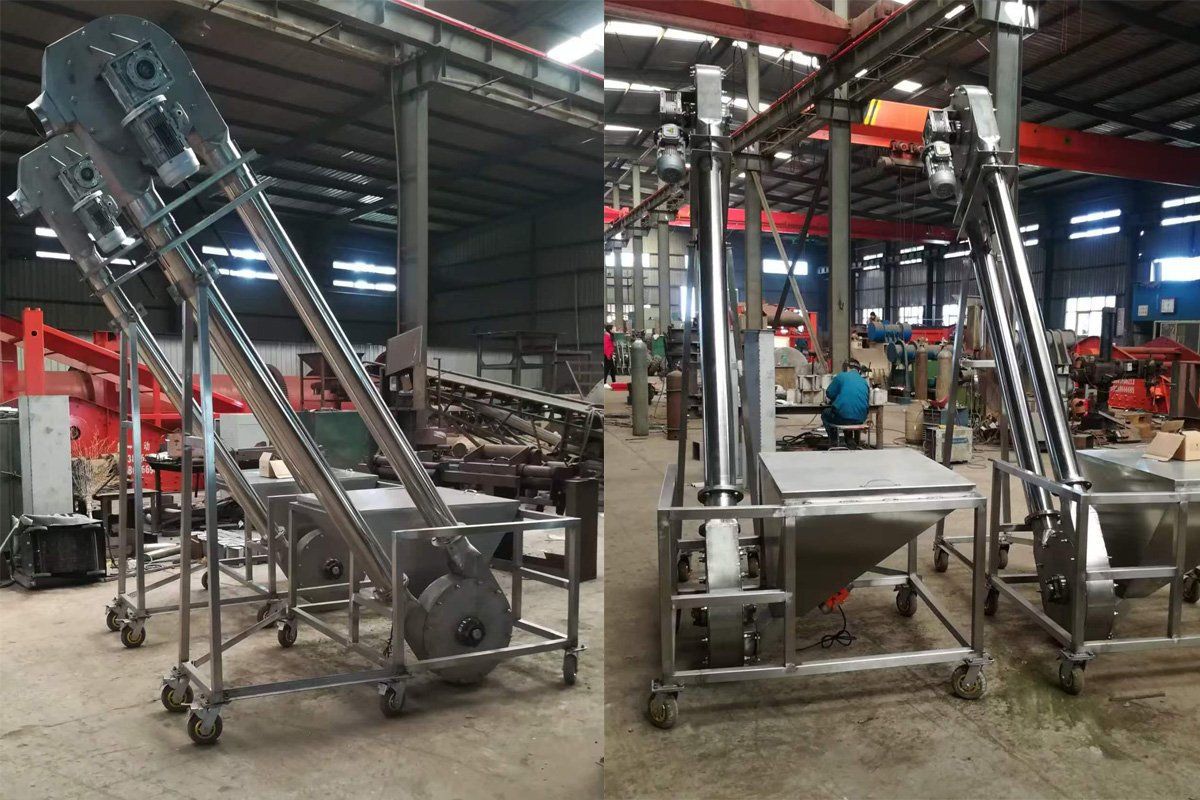

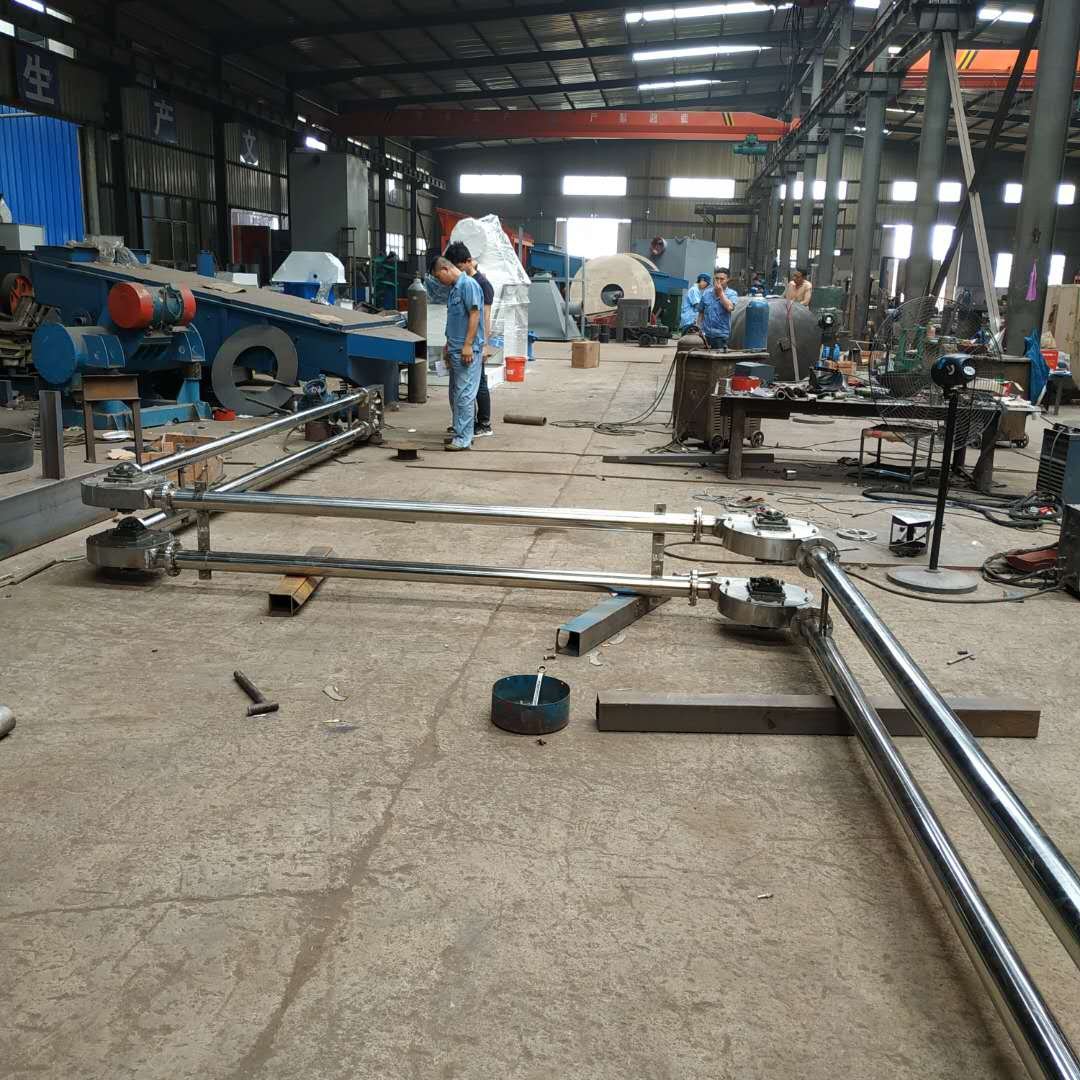

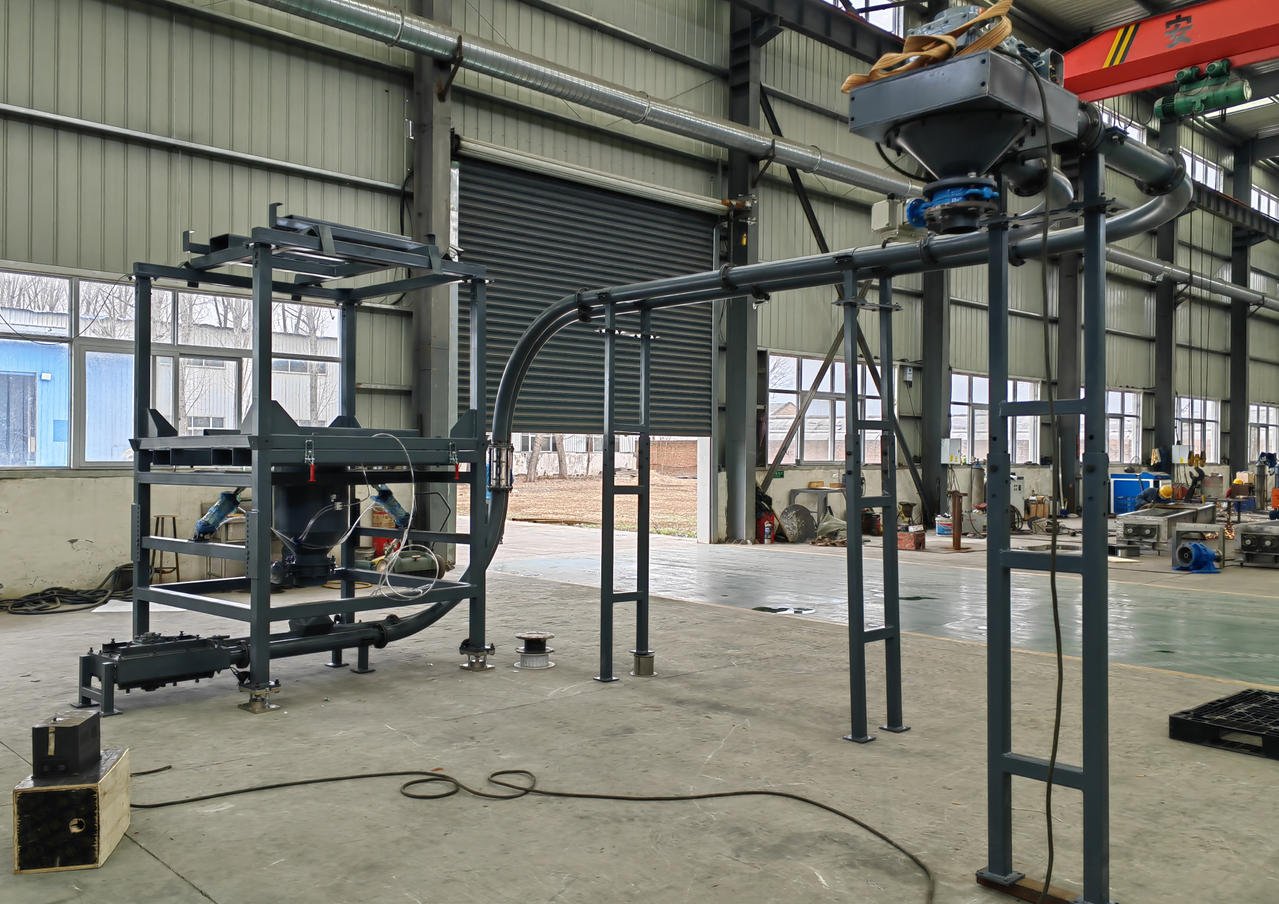

Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material, temperature and bulk density
- Route length, inclination and transfer points
- Required throughput and upstream/downstream connections
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
