Conveyor types
The range includes FU chain and embedded scraper configurations.
Conveying EQUIPMENT
Chain Conveyor
Enclosed chain conveying for dry, free-flowing bulk materials.
- Listed trough widths
- 150–500 mm
- Listed maximum incline
- 15°
- Material moisture guidance
- ≤5% in the supplied FU table
DESIGNED FOR THE PROCESS
Overview
Enclosed chain conveying for dry, free-flowing bulk materials. We configure the equipment around your material, required output and installation conditions.
Applications
- Cement
- Coal
- Alumina
- Dry sand
Enclosed trough
A covered conveying path helps contain dusty material.
Wear considerations
Select the chain and trough for material abrasiveness and duty.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Listed trough widths | 150–500 mm |
|---|---|
| Listed maximum incline | 15° |
| Material moisture guidance | ≤5% in the supplied FU table |
| Model | Listed capacity (m³/h) |
|---|---|
| 150 | 6–23 |
| 200 | 12–40 |
| 270 | 21–75 |
| 350 | 40–125 |
| 410 | 55–150 |
| 500 | 80–225 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK

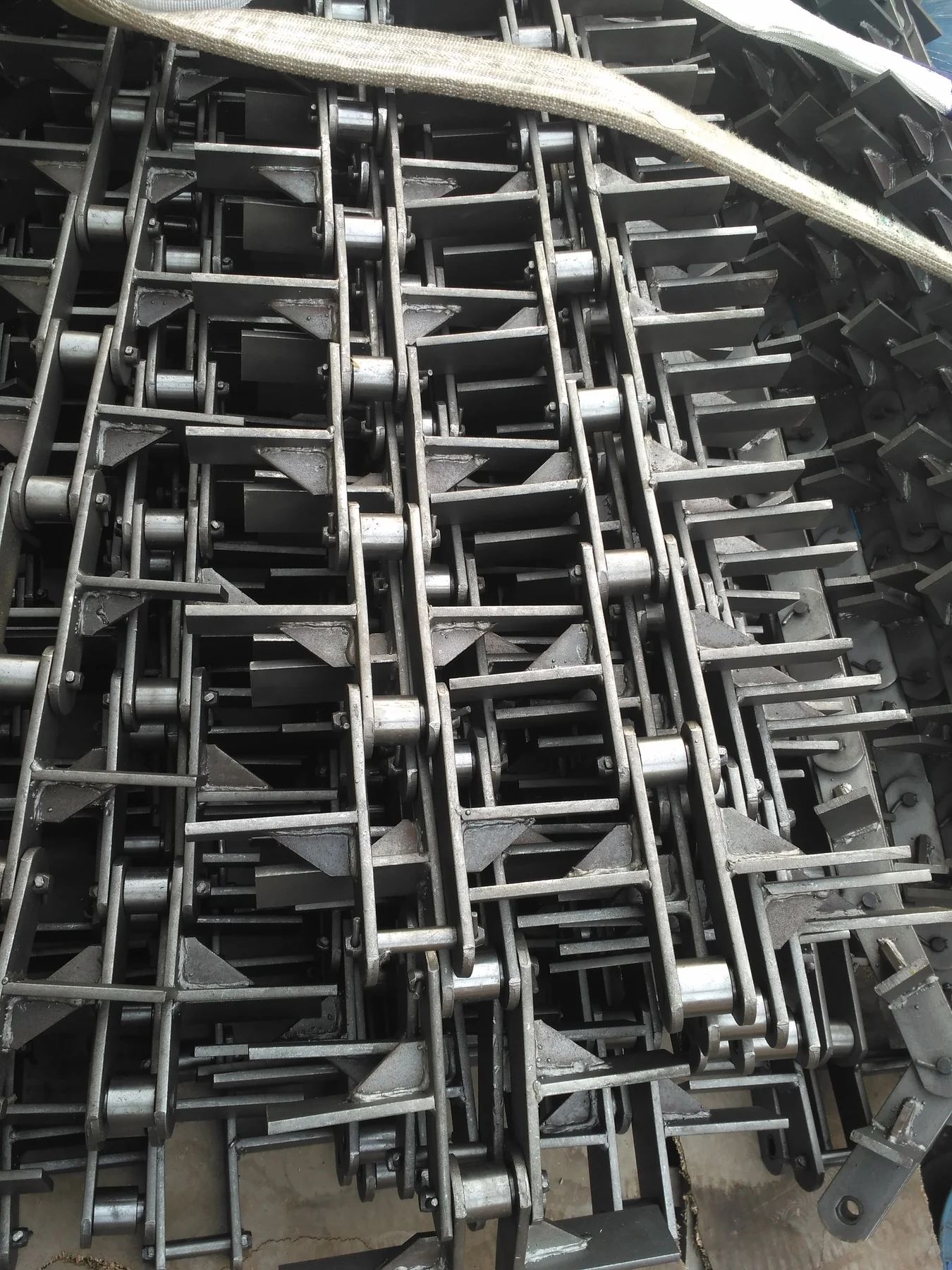

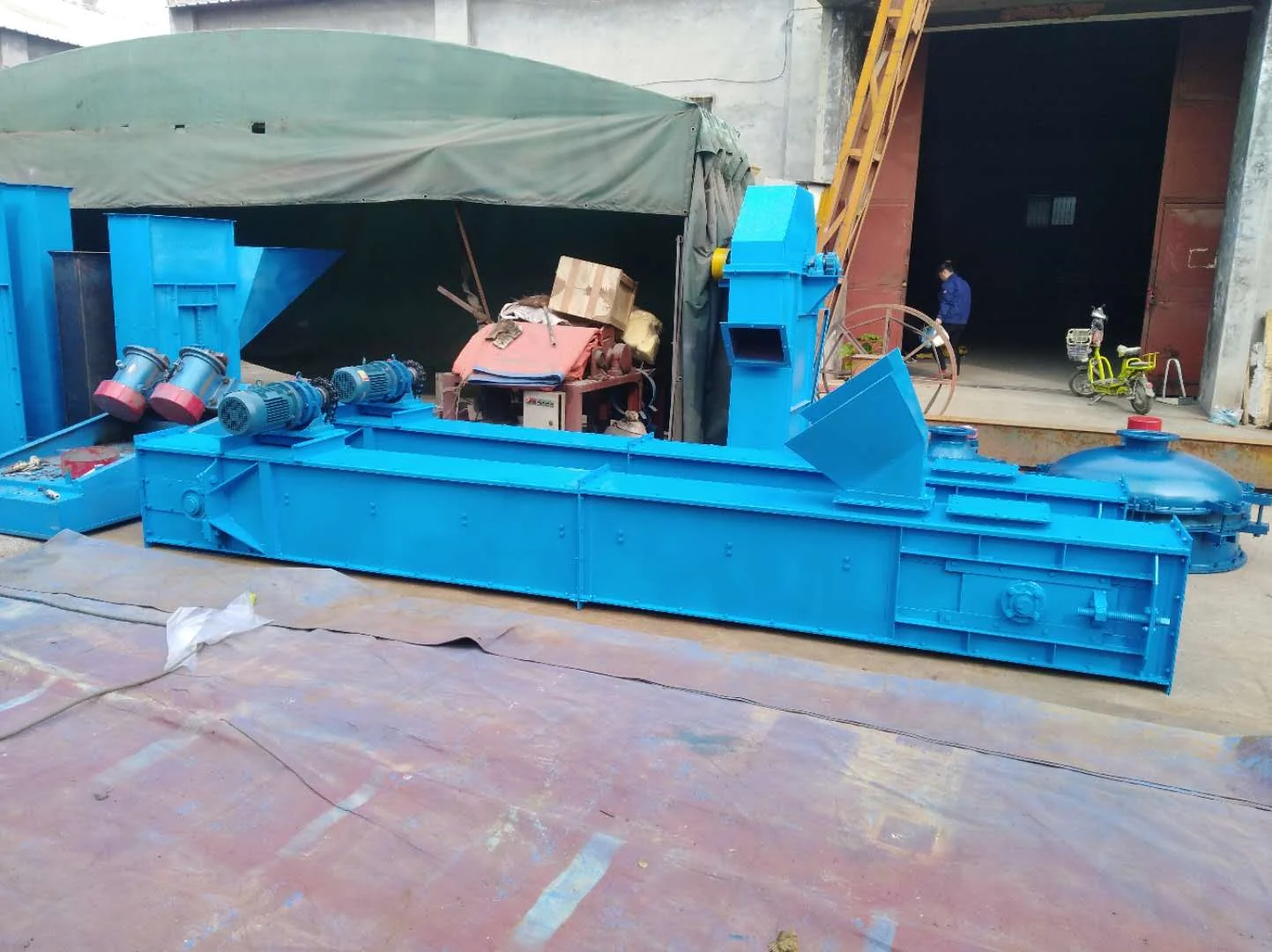

Equipment Gallery
Machine, component and configuration views from our equipment range.
In Operation
Equipment footage showing the machine and its working arrangement.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material, temperature and bulk density
- Route length, inclination and transfer points
- Required throughput and upstream/downstream connections
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
