Plate-chain traction
A high-strength chain carries buckets vertically.
Elevating EQUIPMENT
NE Bucket Elevator
Plate-chain bucket lifting for mineral and abrasive bulk-material handling.
- Series
- NE
- Listed chain speed
- 0.3–0.5 m/s
- Material temperature
- Confirm the selected model and construction
DESIGNED FOR THE PROCESS
Overview
Plate-chain bucket lifting for mineral and abrasive bulk-material handling. We configure the equipment around your material, required output and installation conditions.
Applications
- Cement clinker
- Limestone
- Coal
- Dry clay
Bulk material duty
Suitable configurations handle powders, granules and small lumps.
Material assessment
Particle distribution and temperature guide bucket and drive selection.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Series | NE |
|---|---|
| Listed chain speed | 0.3–0.5 m/s |
| Material temperature | Confirm the selected model and construction |
| Model | Listed capacity (m³/h) | Bucket width (mm) |
|---|---|---|
| NE16 | 16 | 250 |
| NE30 | 30 | 300 |
| NE100 | 110 | 400 |
| NE200 | 210 | 600 |
| NE400 | 400 | 900 |
| NE800 | 800 | 1,200 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK

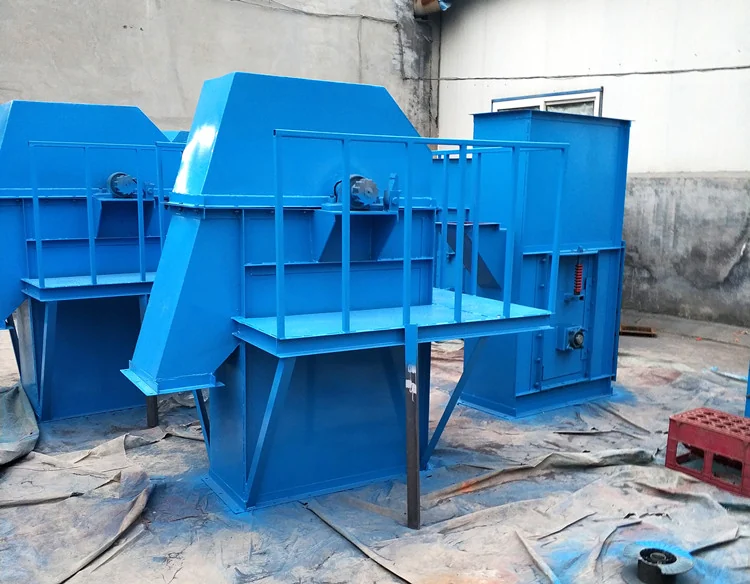

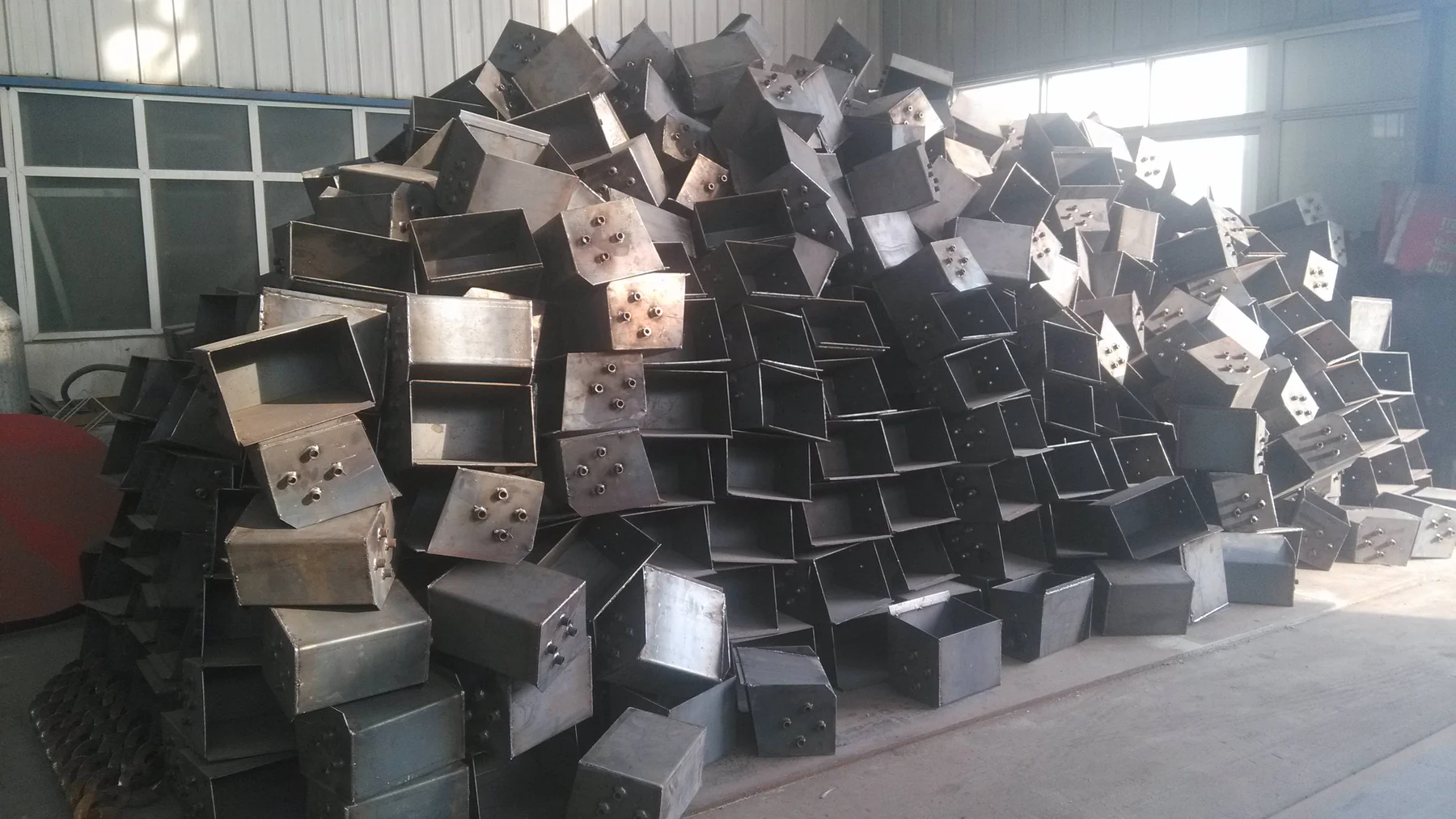

Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material size, density and abrasiveness
- Lifting height and required throughput
- Inlet/outlet positions and available headroom
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
