Sample analysis
Separate a sample into particle-size fractions using stacked test sieves.
Screening EQUIPMENT
Laboratory Sieve Shaker
Benchtop particle-size analysis for laboratory and quality-control samples.
- Series
- ZS
- Listed particle range
- 0.025–3 mm
- Listed layers
- 5
DESIGNED FOR THE PROCESS
Overview
Benchtop particle-size analysis for laboratory and quality-control samples. We configure the equipment around your material, required output and installation conditions.
Applications
- Quality inspection
- Research laboratories
- Food testing
- Powder metallurgy
Liquid testing
Suitable configurations can assess solids or impurities in liquids.
Laboratory formats
The supplied range includes 200 mm and 300 mm sieve diameters.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Series | ZS |
|---|---|
| Listed particle range | 0.025–3 mm |
| Listed layers | 5 |
| Power | 0.12 kW |
| Sieve diameter (mm) | Sample load (g) | Supply (V) | Dimensions (mm) |
|---|---|---|---|
| 200 | ≤200 | 220 | 360 × 300 × 470 |
| 300 | ≤350 | 220 | 410 × 380 × 650 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK

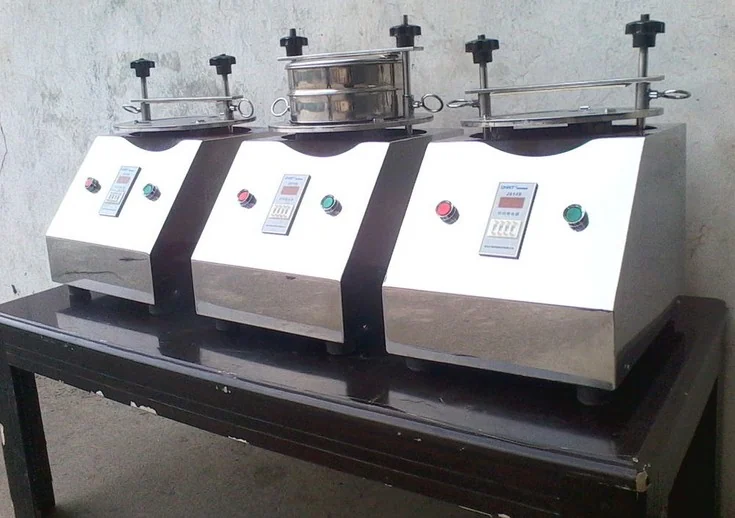

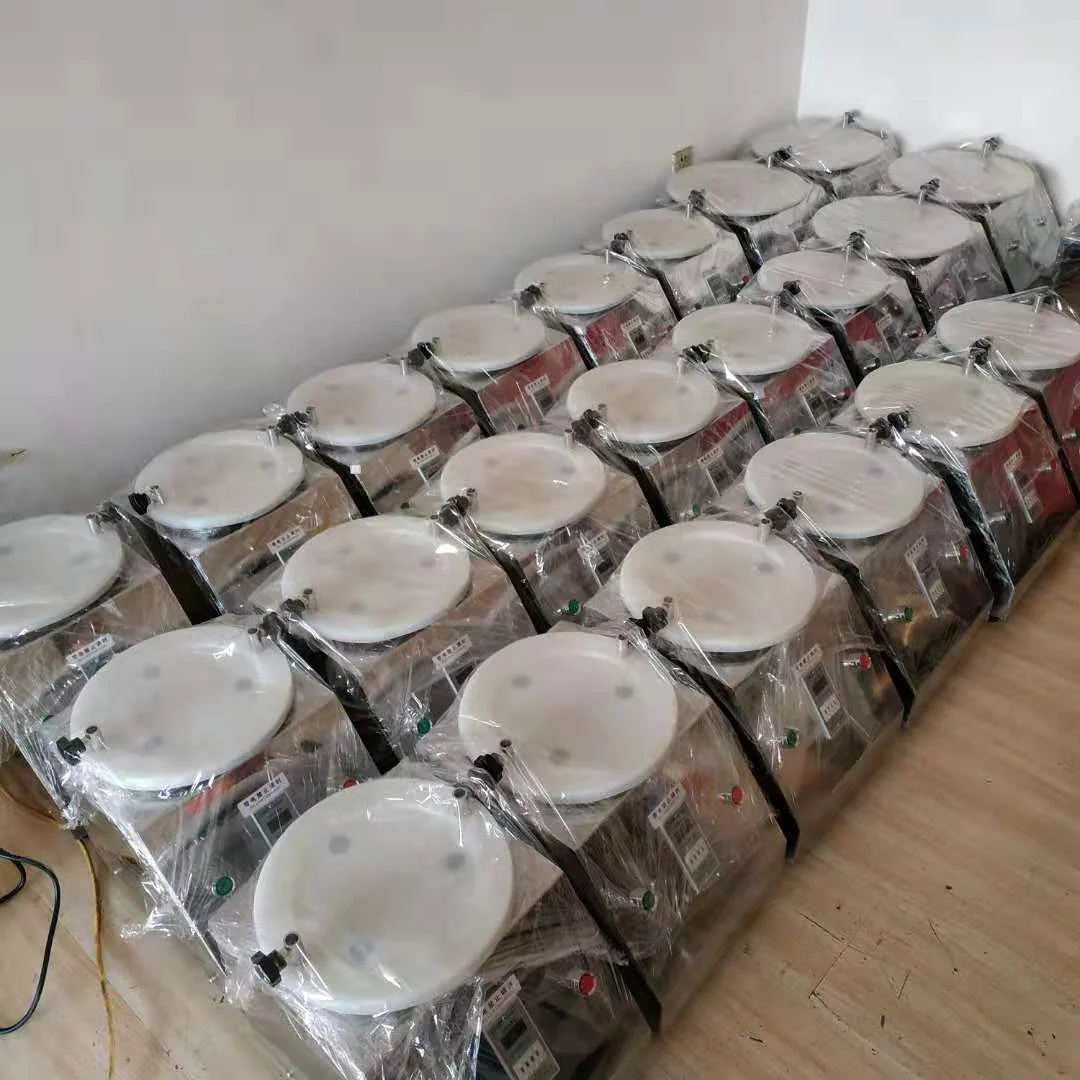

Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material, moisture and particle-size distribution
- Required separation size and number of fractions
- Hourly output and feeding arrangement
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
