Adjustable movement
Screen motion and residence time are configured for the separation.
Screening EQUIPMENT

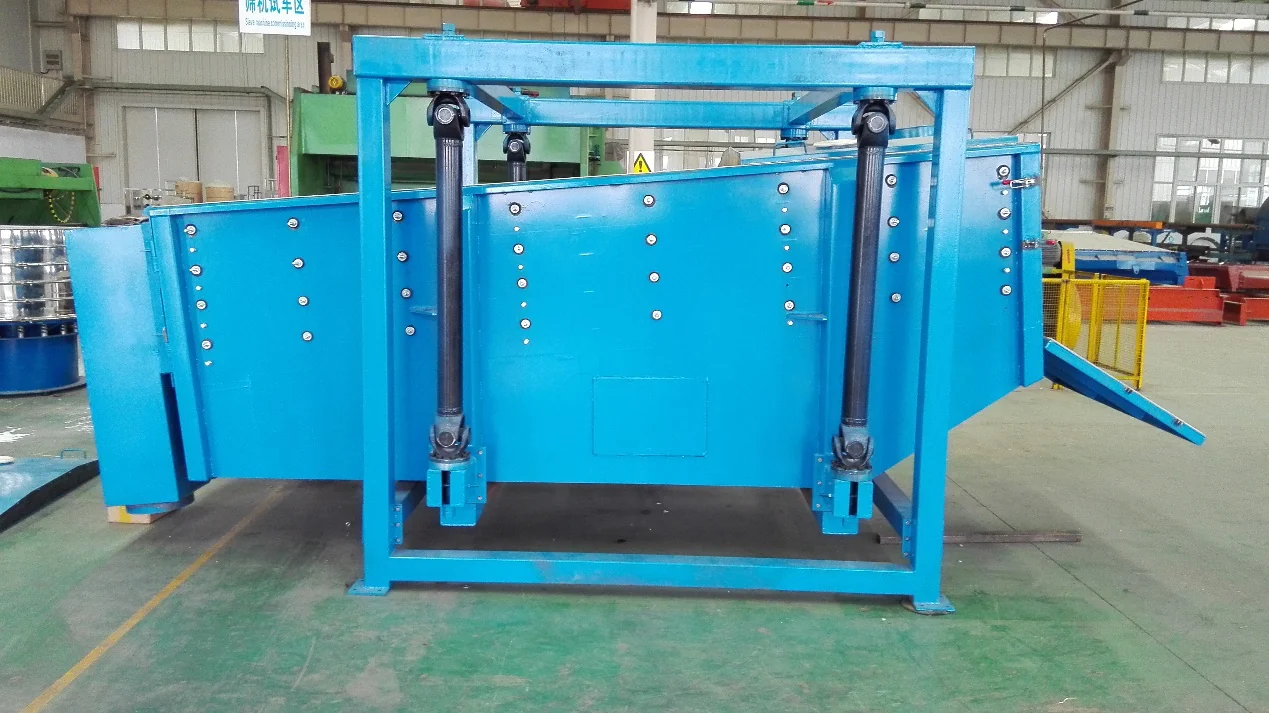

Gyratory Screen
Rectangular gyratory screening for controlled grading of powders and granules.
- Series
- FYBS
- Screen decks
- 1–5
- Screen stroke
- 25–60 mm
DESIGNED FOR THE PROCESS
Overview
Rectangular gyratory screening for controlled grading of powders and granules. We configure the equipment around your material, required output and installation conditions.
Applications
- Salt
- Resins
- Fertilizers
- Metal powders
- Ceramics
Enclosed screen body
A covered screen arrangement helps contain material during operation.

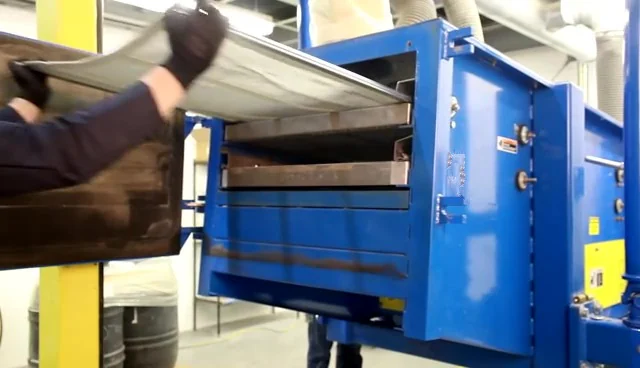

Service access
Removable screens support mesh changes and inspection.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Series | FYBS |
|---|---|
| Screen decks | 1–5 |
| Screen stroke | 25–60 mm |
| Rotation frequency | 180–260 rpm |
| Model | Screen surface (mm) | Power (kW) |
|---|---|---|
| FYBS1030 | 1,000 × 3,000 | 3 |
| FYBS1236 | 1,200 × 3,600 | 4 |
| FYBS1536 | 1,500 × 3,600 | 5.5 |
| FYBS1836 | 1,800 × 3,600 | 7.5 |
| FYBS2036 | 2,000 × 3,600 | 7.5 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK

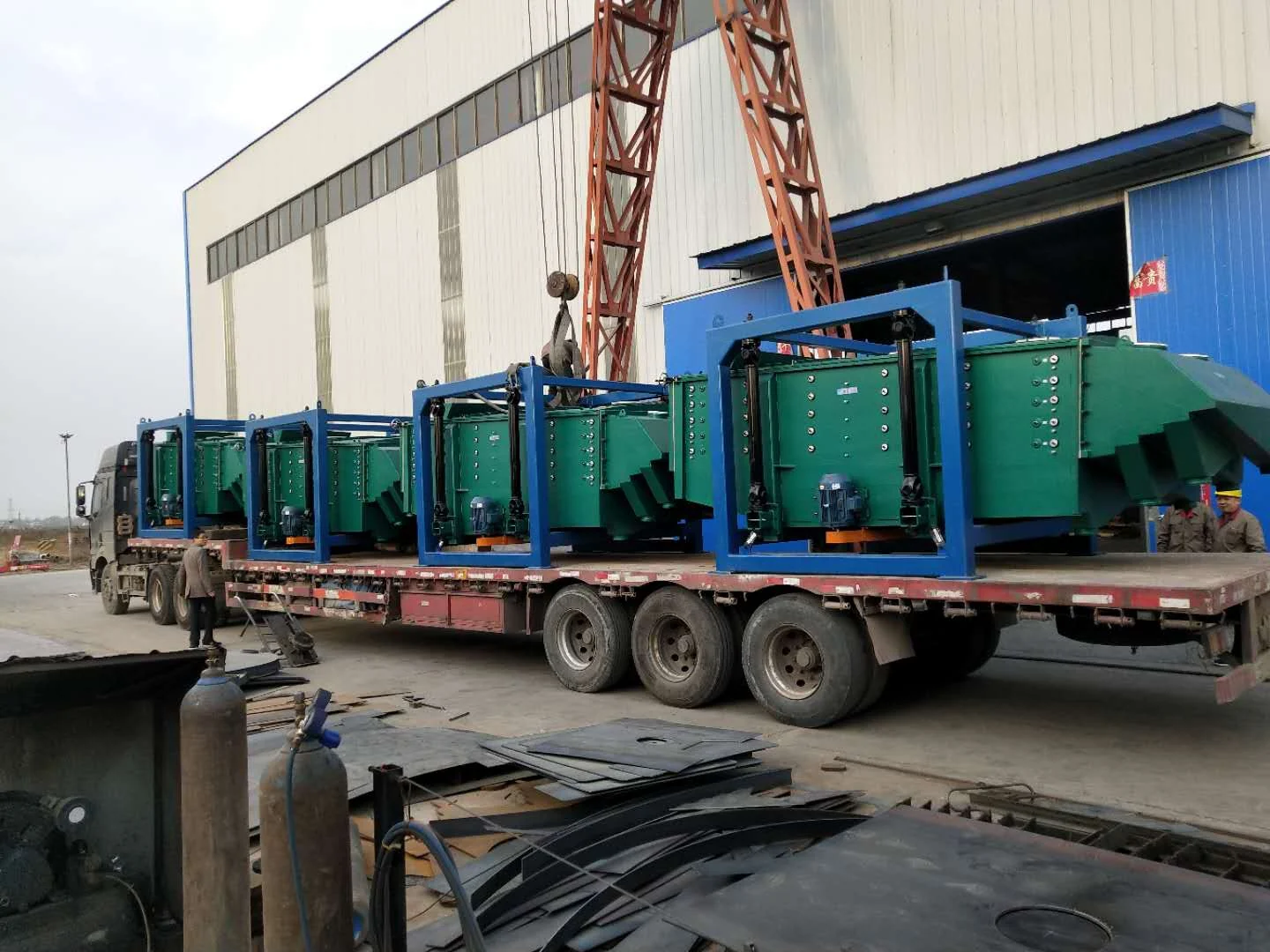

Equipment Gallery
Machine, component and configuration views from our equipment range.
In Operation
Equipment footage showing the machine and its working arrangement.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material, moisture and particle-size distribution
- Required separation size and number of fractions
- Hourly output and feeding arrangement
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
