Rotating drum
Material travels through a rotating screening cylinder.
Screening EQUIPMENT
Trommel Screen
Rotating drum classification for bulk granular and mineral materials.
- Listed models
- 600–2,000
- Screen aperture
- Selected for the required separation
- Drive
- Geared rotating drum
DESIGNED FOR THE PROCESS
Overview
Rotating drum classification for bulk granular and mineral materials. We configure the equipment around your material, required output and installation conditions.
Applications
- Sand
- Coal
- Limestone
- Refractory materials
Screen options
Drum length and aperture are selected for the material and required fractions.
Installation formats

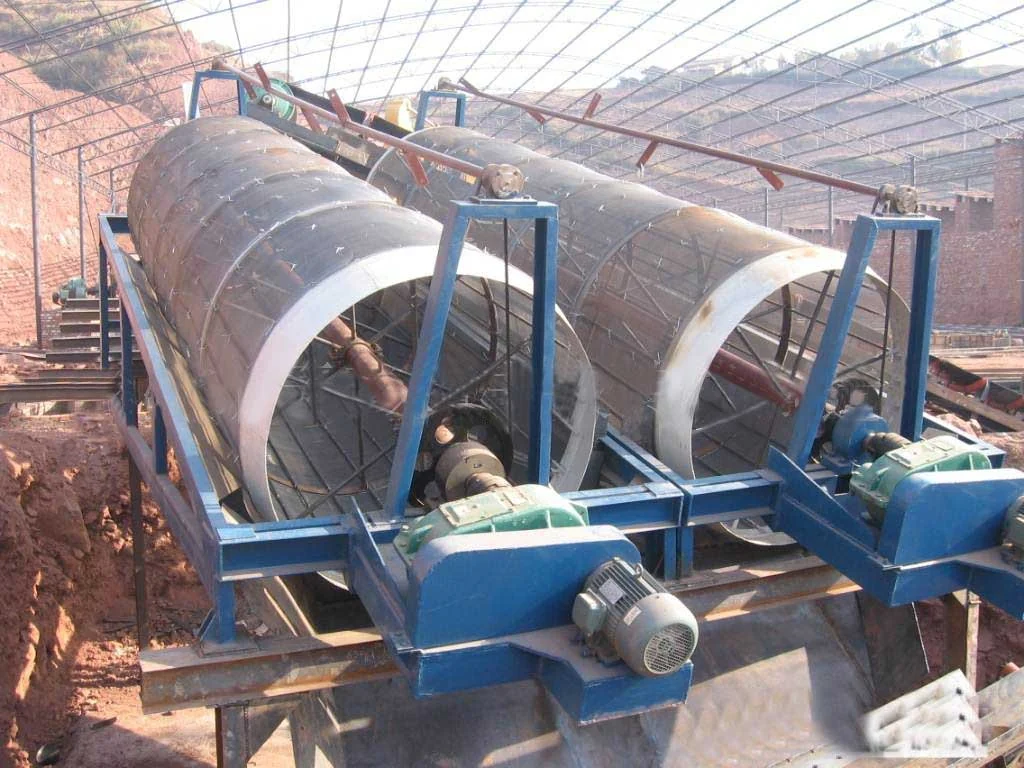

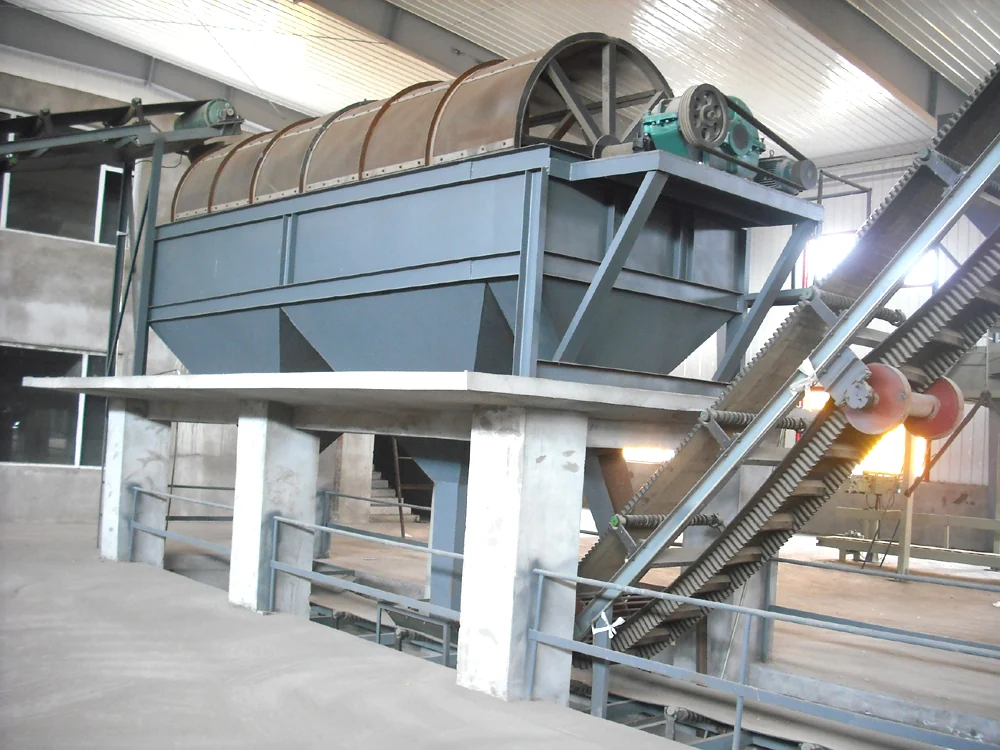

Open and enclosed examples are available in the product range.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Listed models | 600–2,000 |
|---|---|
| Screen aperture | Selected for the required separation |
| Drive | Geared rotating drum |
| Model | Listed speed (rpm) | Listed capacity (m³/h) |
|---|---|---|
| 600 | 20 | 5–10 |
| 800 | 18 | 10–14 |
| 1000 | 16 | 14–16 |
| 1200 | 15 | 16–20 |
| 1500 | 12 | 20–32 |
| 2000 | 8 | 32–45 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK
Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material, moisture and particle-size distribution
- Required separation size and number of fractions
- Hourly output and feeding arrangement
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
