Twin-motor drive
Two vibration motors move the material forward along the screen.
Screening EQUIPMENT
Linear Vibrating Screen
Straight-line conveying and classification for dry, free-flowing materials.
- Screen decks
- 1–6
- Listed mesh range
- 2–200 mesh
- Vibration frequency
- 960 rpm
DESIGNED FOR THE PROCESS
Overview
Straight-line conveying and classification for dry, free-flowing materials. We configure the equipment around your material, required output and installation conditions.
Applications
- Plastic granules
- Ceramic raw materials
- Fertilizers
- Grain
- Abrasives
Grading options
Select screen length, width and layers for the required fractions.
Material suitability
The supplied description targets dry, non-sticky material.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Screen decks | 1–6 |
|---|---|
| Listed mesh range | 2–200 mesh |
| Vibration frequency | 960 rpm |
| Moisture guidance | Below 7% in the supplied description |
| Model | Screen surface (mm) | Listed capacity (t/h) |
|---|---|---|
| 520 | 500 × 2,000 | 0.05–5 |
| 525 | 500 × 2,500 | 0.06–8 |
| 1020 | 1,000 × 2,000 | 0.12–20 |
| 1030 | 1,000 × 3,000 | 0.1–20 |
| 1530 | 1,500 × 3,000 | 0.1–32 |
| 2050 | 2,000 × 5,000 | 0.1–48 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK

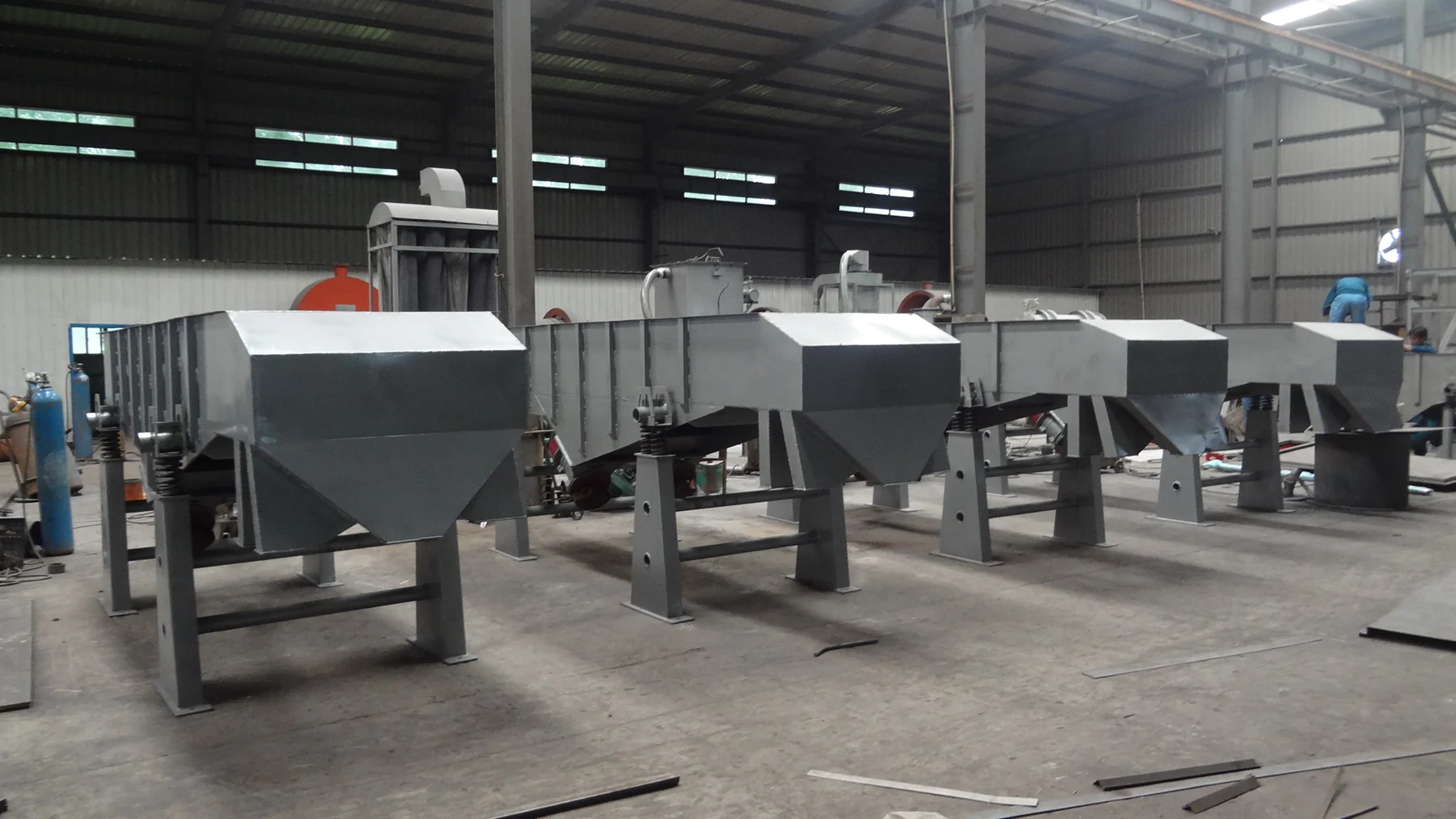

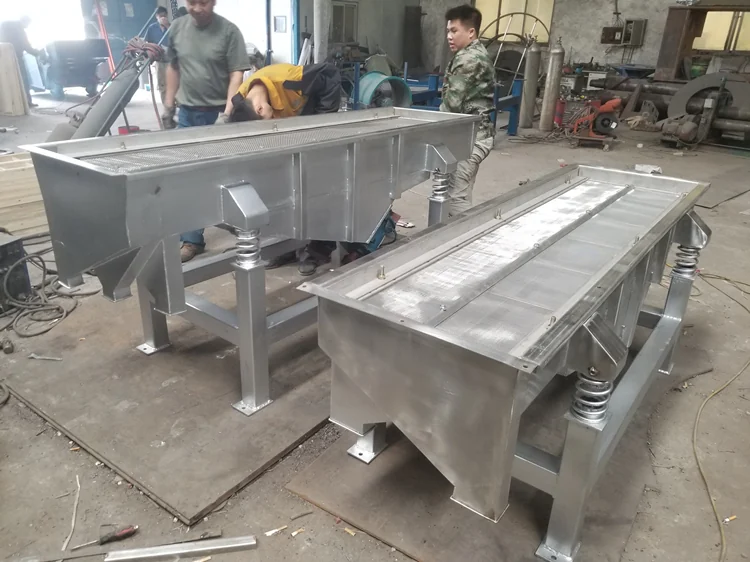

Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material, moisture and particle-size distribution
- Required separation size and number of fractions
- Hourly output and feeding arrangement
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
