Circular movement
An eccentric exciter drives material along an inclined screen.
Screening EQUIPMENT
Circular Vibrating Screen
Inclined screening for quarry, mineral and bulk-material grading.
- Series
- YA / YK
- YK decks
- 1–4 depending on model
- Screen aperture
- Model-specific
DESIGNED FOR THE PROCESS
Overview
Inclined screening for quarry, mineral and bulk-material grading. We configure the equipment around your material, required output and installation conditions.
Applications
- Quarries
- Minerals
- Building materials
- Metallurgy
YA and YK series
Different structural arrangements are available for the application.
Multiple decks
YK configurations include one to four screening decks.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Series | YA / YK |
|---|---|
| YK decks | 1–4 depending on model |
| Screen aperture | Model-specific |
| Feed size and capacity | Confirm material distribution and bulk density |
| Example model | Decks | Area (m²) | Power (kW) |
|---|---|---|---|
| YK1230 | 1 | 3.6 | 5.5 |
| 2YK1230 | 2 | 3.6 | 5.5 |
| 3YK1545 | 3 | 6.75 | 15 |
| 3YK2160 | 3 | 12.6 | 30 |
| 4YK2460 | 4 | 14.4 | 45 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK

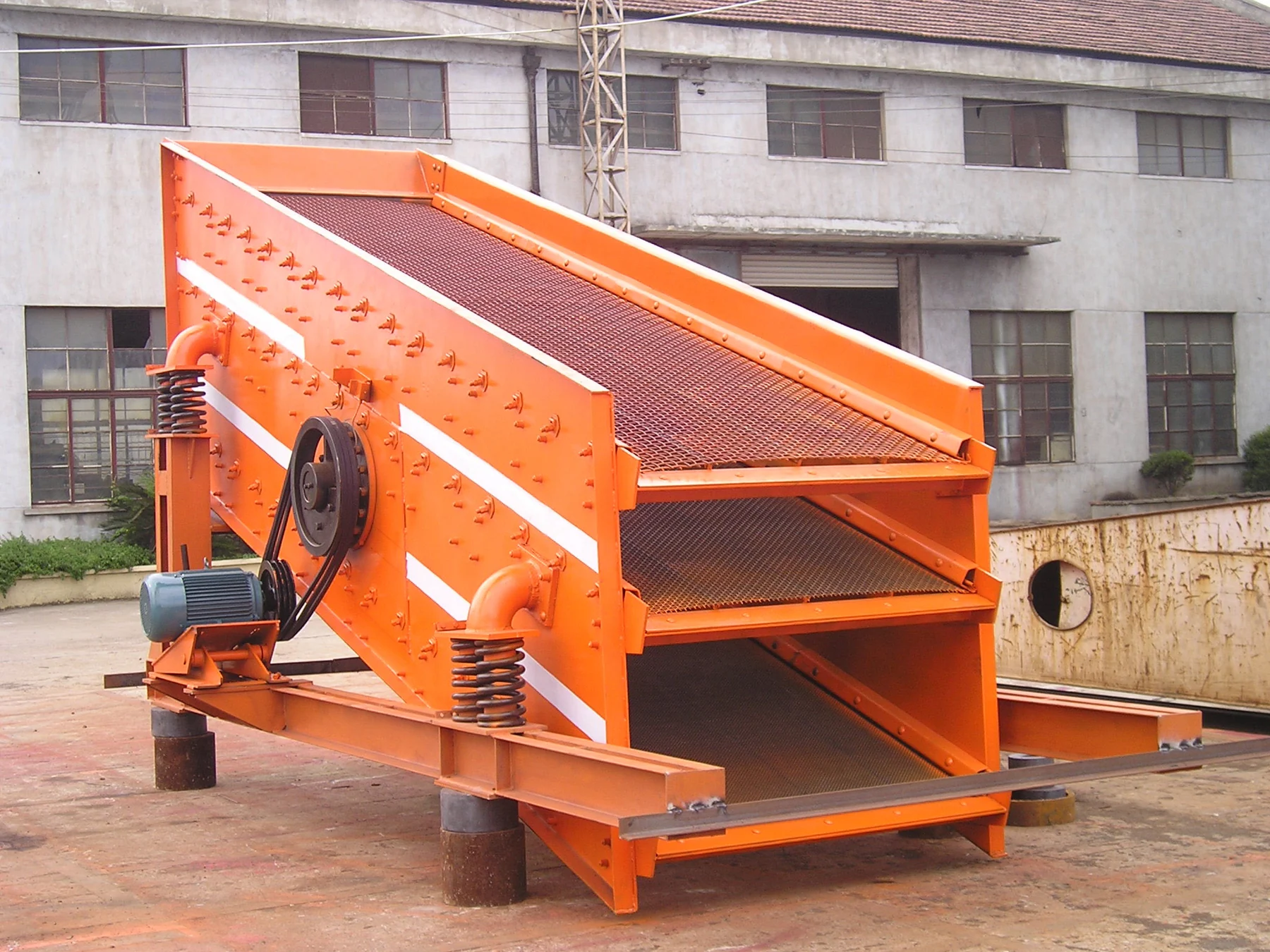

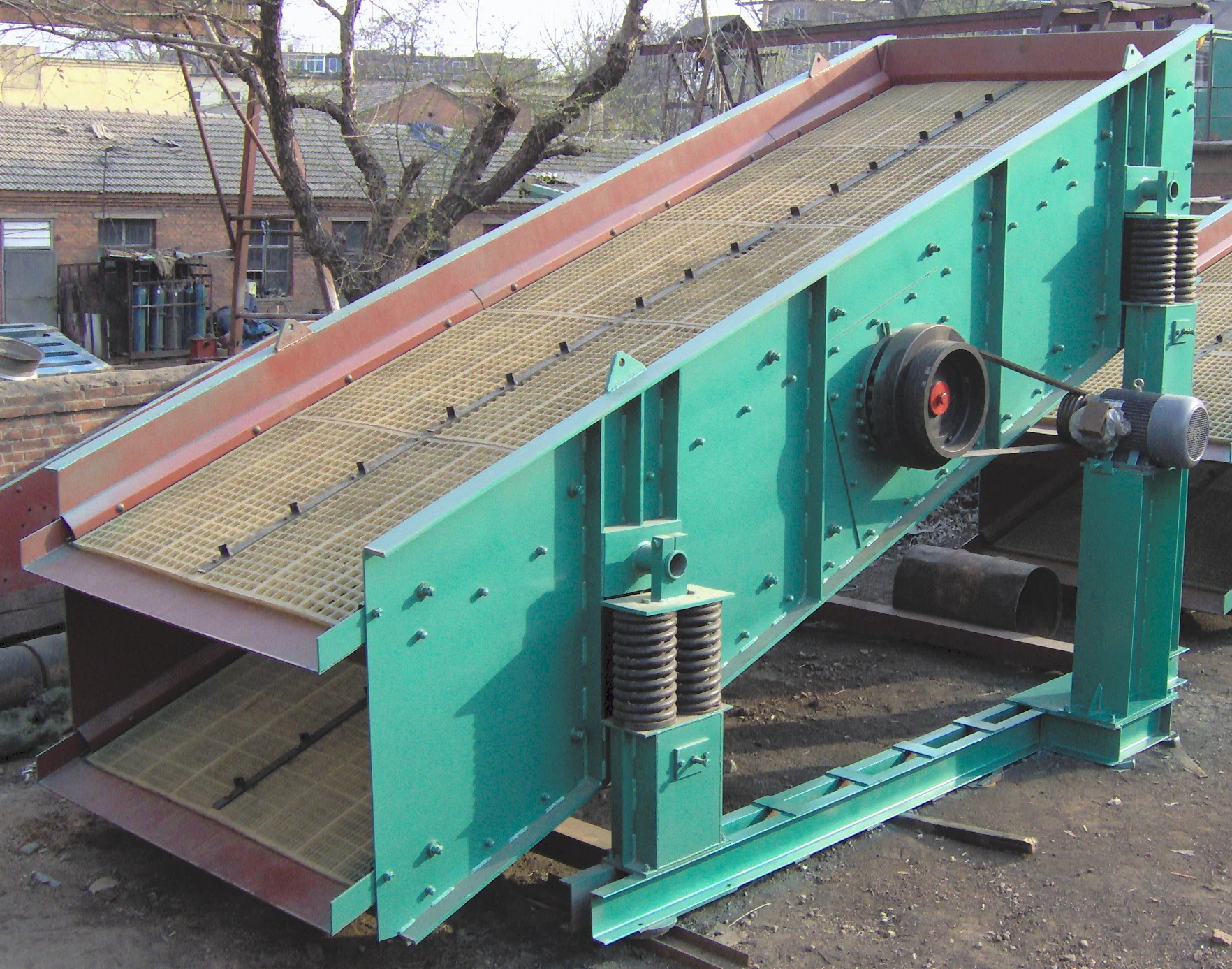

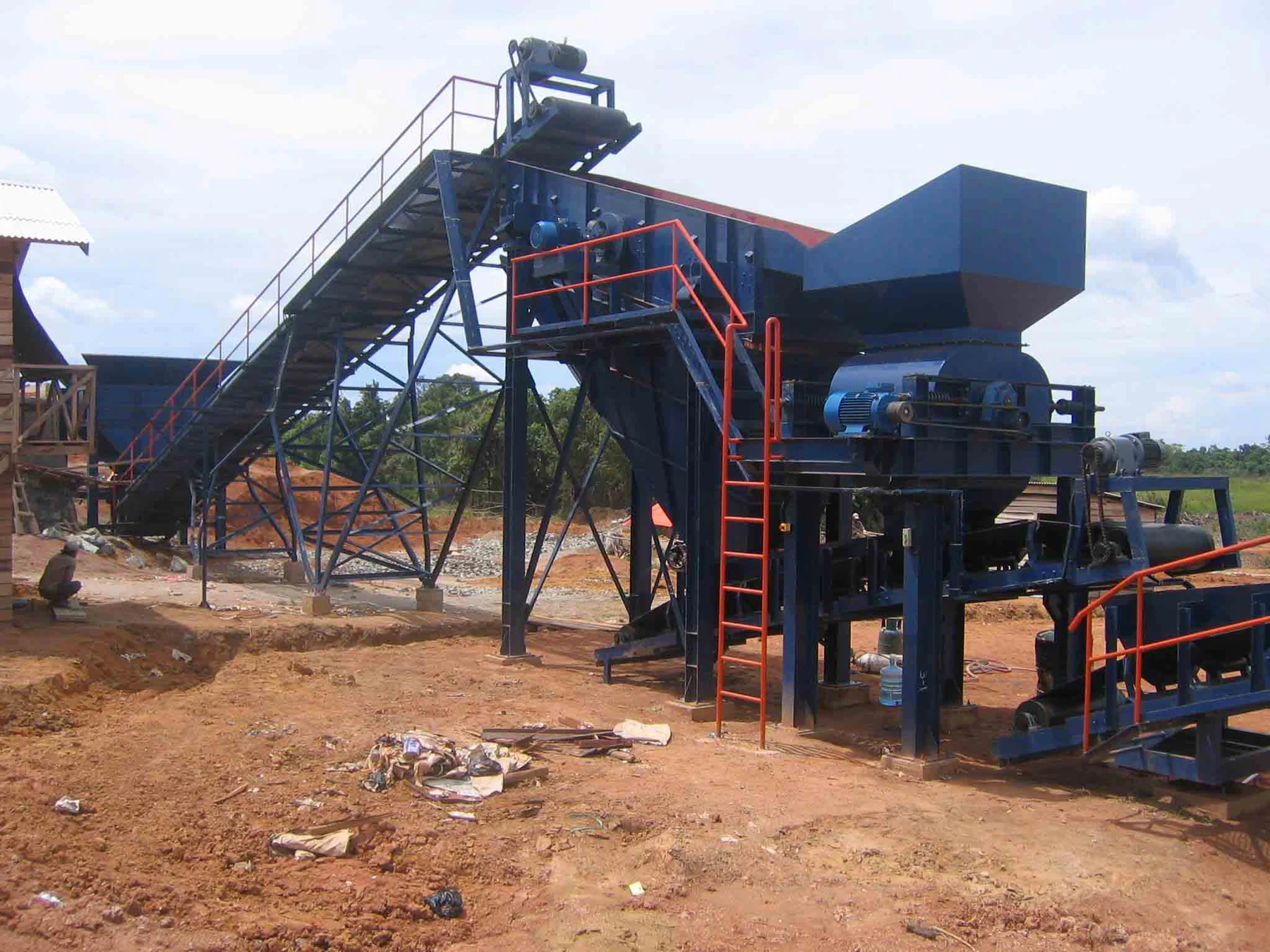

Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material, moisture and particle-size distribution
- Required separation size and number of fractions
- Hourly output and feeding arrangement
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
