Weighing control
A weighing instrument controls the filling cycle.
Packing & Support EQUIPMENT
Weighing Packing Machine
Controlled weighing and bag filling for suitable powders and granular materials.
- Listed supply
- 220 V / 50 Hz
- Listed accuracy
- 0.2% FS, subject to material and setup
- Line configuration
- Confirm feeding, bag handling and closure
DESIGNED FOR THE PROCESS
Overview
Controlled weighing and bag filling for suitable powders and granular materials. We configure the equipment around your material, required output and installation conditions.
Applications
- Powder packing
- Granule packing
- Bagging lines
Equipment integration
Controls can coordinate pneumatic components or vibratory feeding.
Bag handling

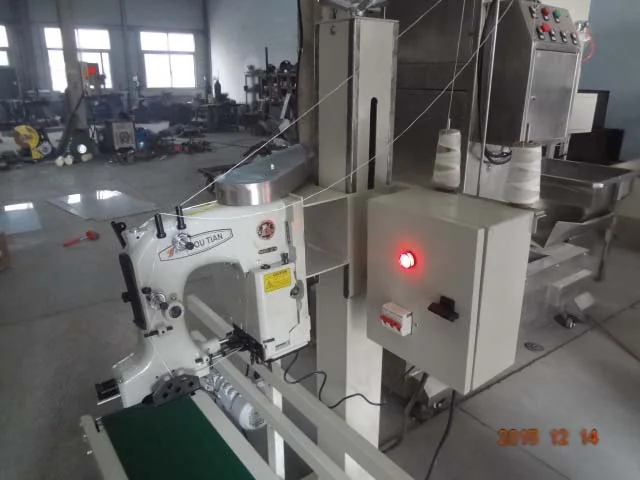

Conveying and bag-sewing equipment can be included in the line configuration.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Listed supply | 220 V / 50 Hz |
|---|---|
| Listed accuracy | 0.2% FS, subject to material and setup |
| Line configuration | Confirm feeding, bag handling and closure |
| Model | Weighing range (kg) | Bags/min | Power (W) |
|---|---|---|---|
| 5 | 0.5–5 | 7–18 | 250 |
| 10 | 2–10 | 6–12 | 250 |
| 15 | 3–15 | 5–12 | 350 |
| 25 | 3–25 | 5–10 | 350 |
| 50 | 10–50 | 4–8 | 350 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK

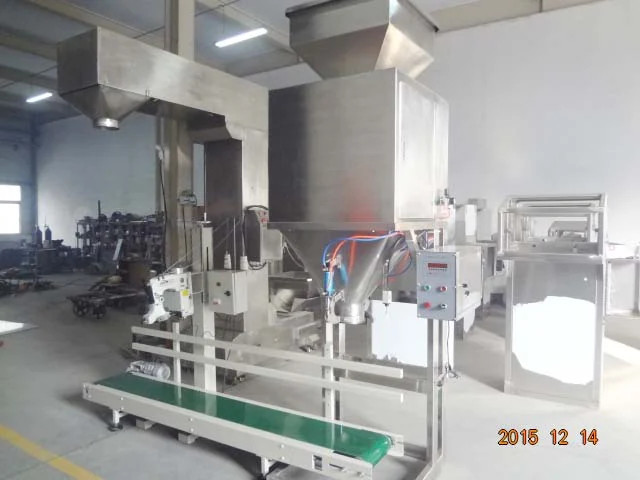

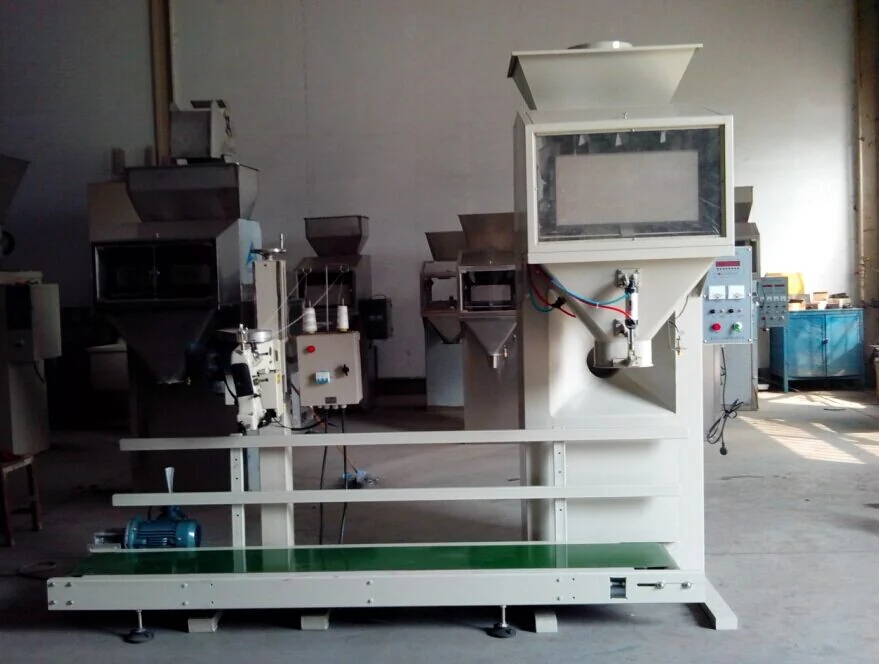

Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material characteristics and intended duty
- Required output, load or airflow
- Installation layout and connected equipment
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
