Ribbon mixing

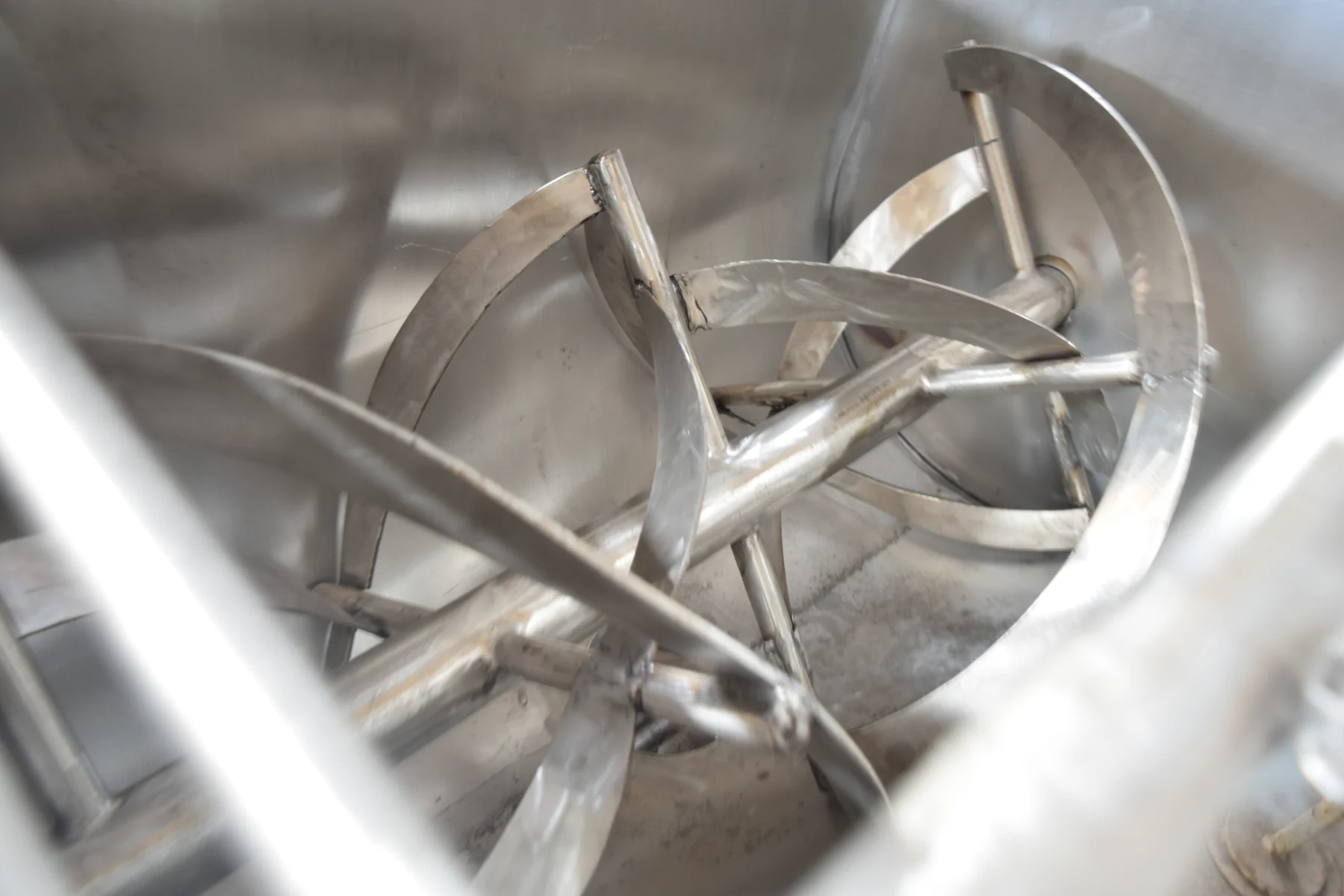

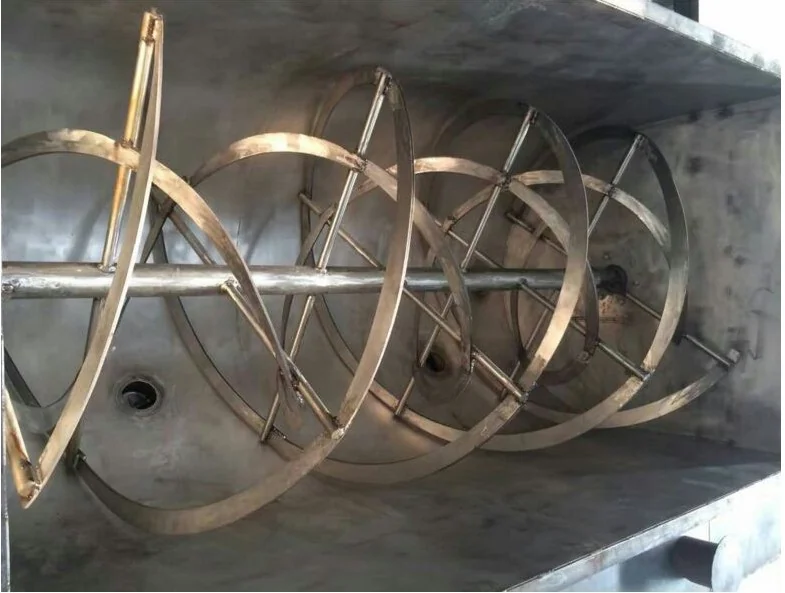

Inner and outer ribbons circulate material through the horizontal trough.
Mixing EQUIPMENT

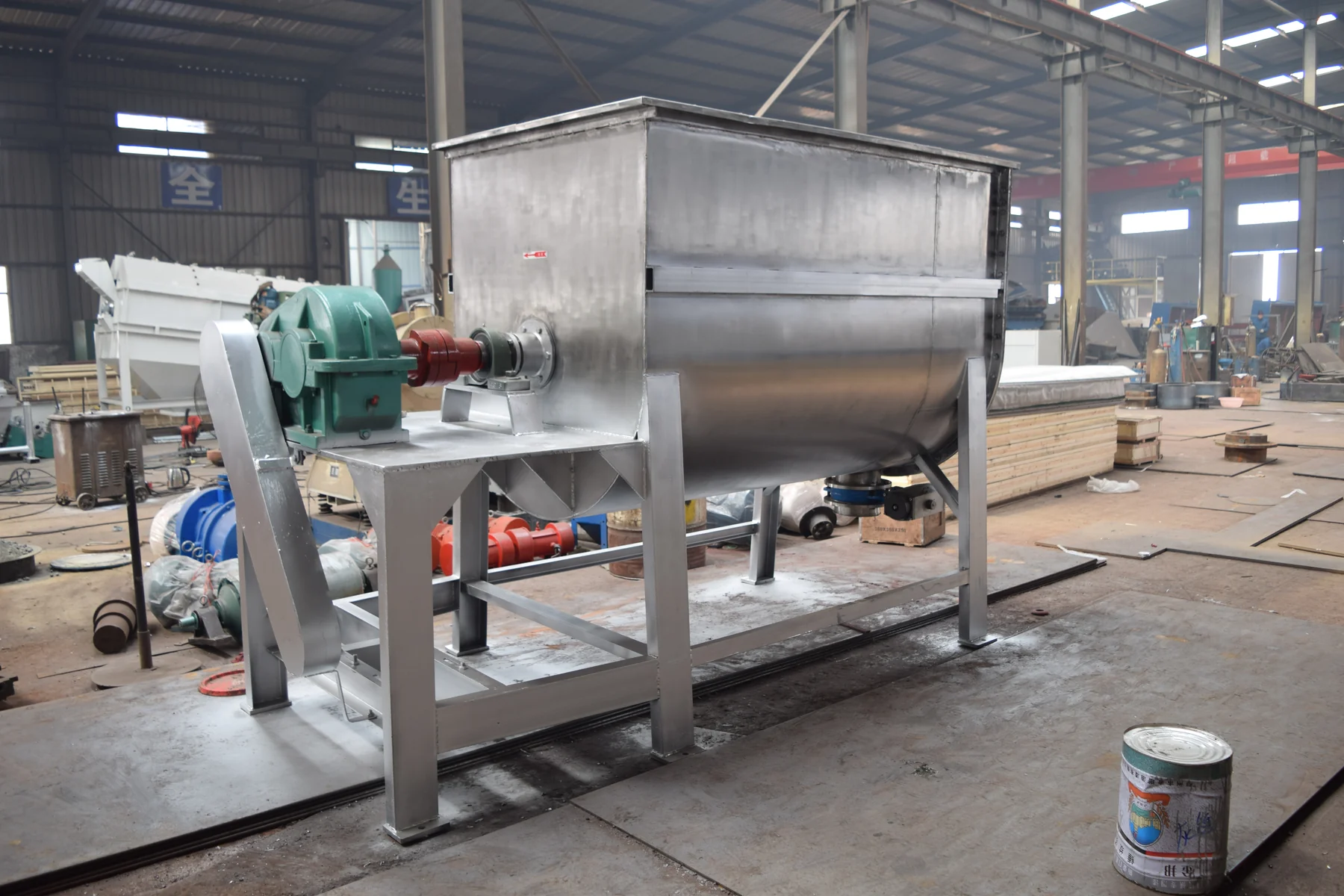

Ribbon Mixer
Horizontal ribbon blending for dry powders and granular ingredients.
- Vessel
- Horizontal trough
- Agitator
- Double ribbon
- Batch selection
- Based on bulk density and usable fill volume
DESIGNED FOR THE PROCESS
Overview
Horizontal ribbon blending for dry powders and granular ingredients. We configure the equipment around your material, required output and installation conditions.
Applications
- Dry powders
- Granules
- Chemical blends
- Food ingredients
Batch loading
Set the working charge for the material density and mixing target.
Integrated feeding

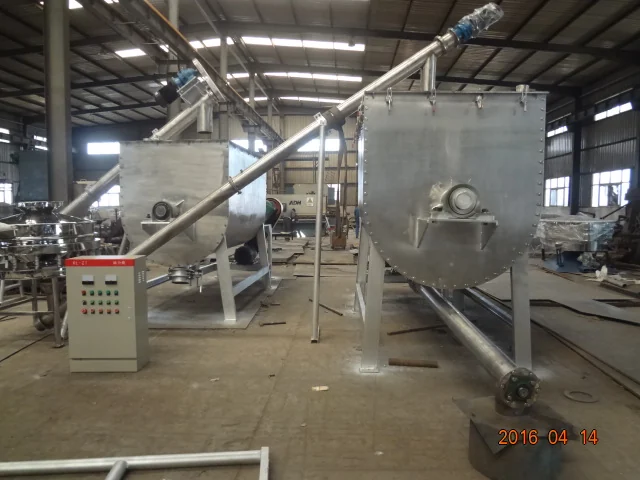

A screw conveyor can be paired with the mixer for loading.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Vessel | Horizontal trough |
|---|---|
| Agitator | Double ribbon |
| Batch selection | Based on bulk density and usable fill volume |
| Listed model | Listed batch mass (kg) | Power (kW) |
|---|---|---|
| 150 | 150 | 3 |
| 250 | 250 | 5.5 |
| 500 | 500 | 11 |
| 1000 | 1,000 | 18.5 |
| 1500 | 1,500 | 22 |
| 2000 | 2,000 | 30 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK
Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Ingredients, density and blend requirements
- Usable batch volume and desired cycle time
- Loading, discharge and cleaning requirements
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
