Mechanical feed

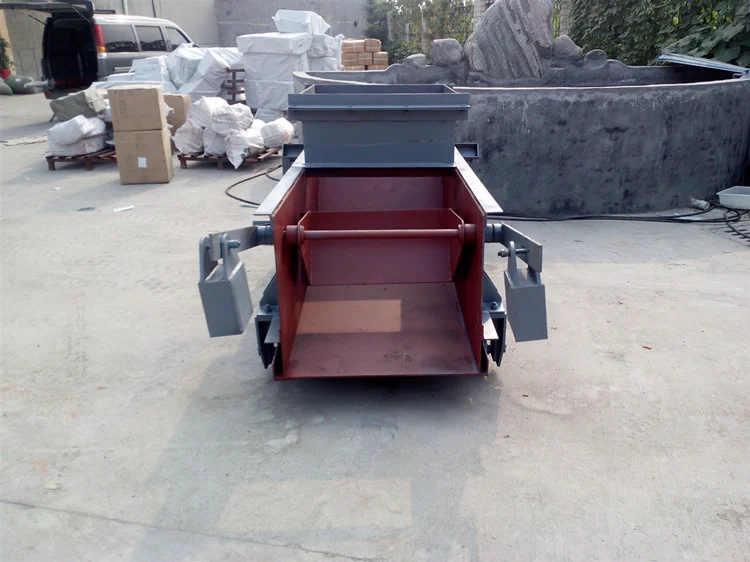

A crank-link mechanism moves the bottom plate back and forth.
Feeding EQUIPMENT
Reciprocating Feeder
Reciprocating plate feeding for coal and suitable loose bulk materials.
- Series
- K-0 to K-4
- Listed stroke settings
- 50 / 100 / 150 / 200 mm
- Selection
- Material size, bulk density and required feed rate
DESIGNED FOR THE PROCESS
Overview
Reciprocating plate feeding for coal and suitable loose bulk materials. We configure the equipment around your material, required output and installation conditions.
Applications
- Coal bunkers
- Bulk storage discharge
- Mineral handling
Bin discharge
Install below a bunker or hopper to feed receiving equipment.
Adjustable stroke
The crank setting changes the bottom-plate stroke and feed rate.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Series | K-0 to K-4 |
|---|---|
| Listed stroke settings | 50 / 100 / 150 / 200 mm |
| Selection | Material size, bulk density and required feed rate |
| Model | Crank speed (rpm) | Power (kW) |
|---|---|---|
| K-0 | 57 | 4 |
| K-1 | 57 | 4 |
| K-2 | 52 | 4 |
| K-3 | 62 | 7.5 |
| K-4 | 62 | 18.5 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK
Equipment Gallery

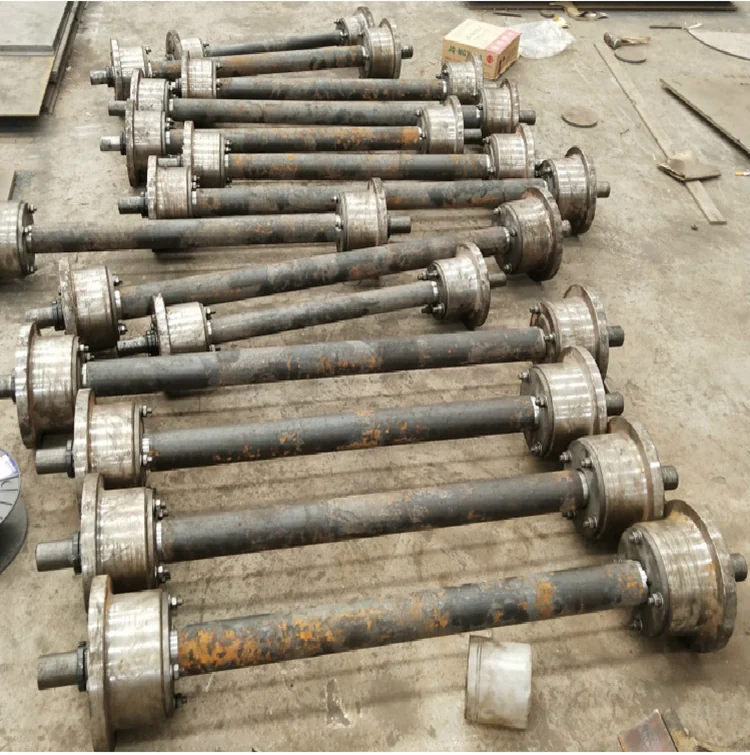

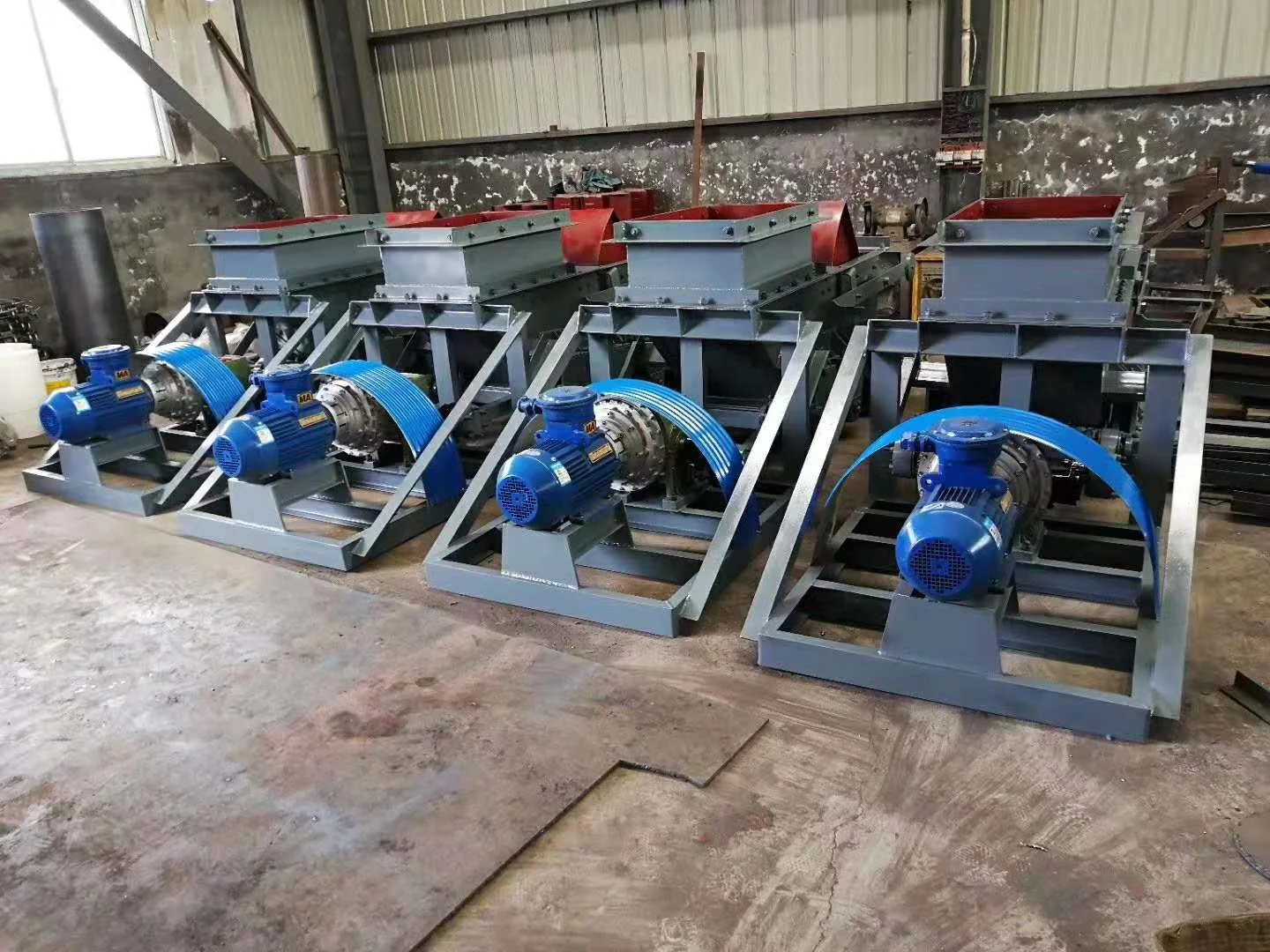

Machine, component and configuration views from our equipment range.
In Operation
Equipment footage showing the machine and its working arrangement.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material density and flow behaviour
- Required feed rate and control method
- Pickup point, receiving equipment and available space
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
