Continuous feed

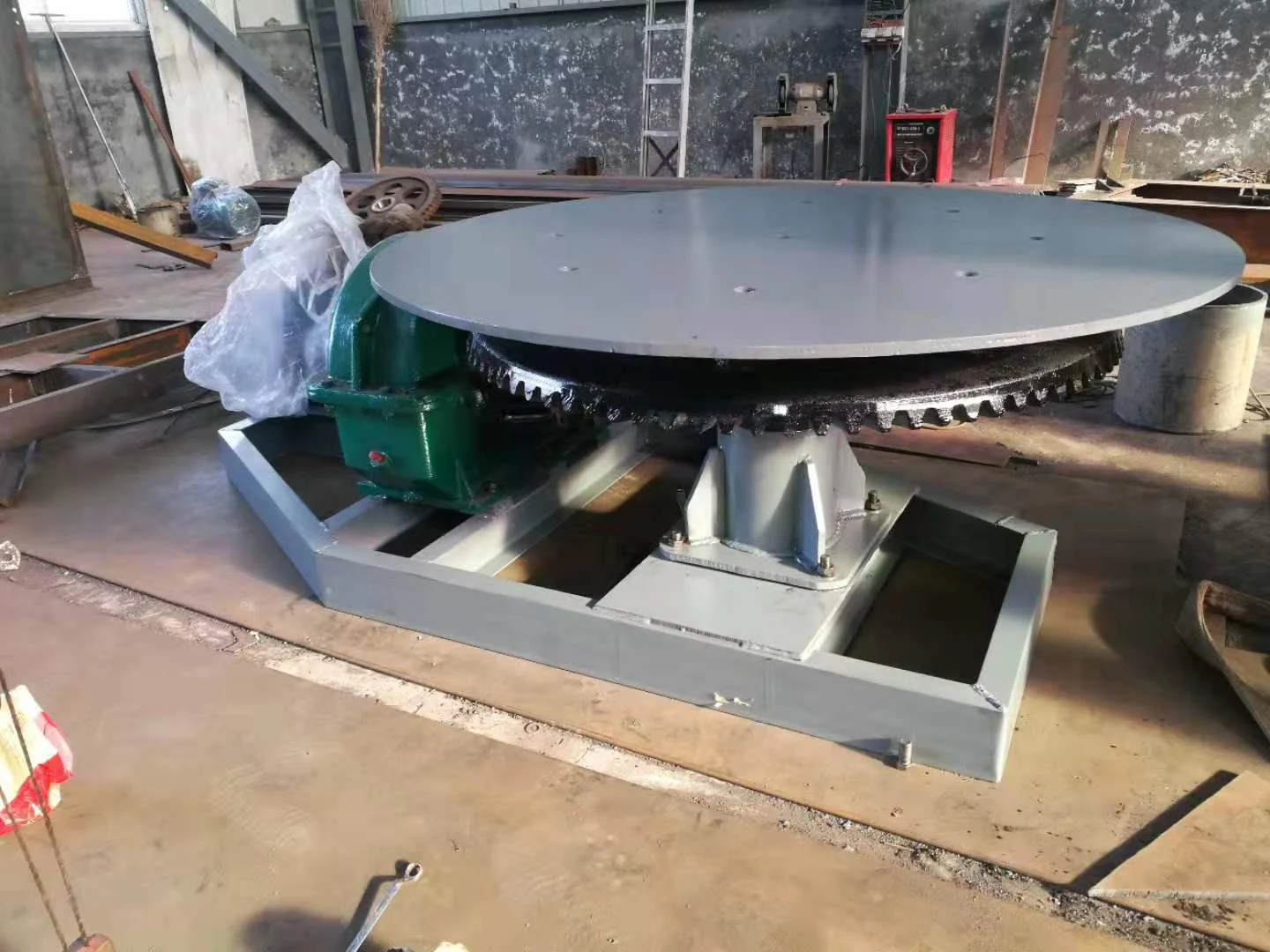

Disc rotation carries material to the discharge point.
Feeding EQUIPMENT
Disc Feeder
Continuous volumetric feeding using a rotating disc below a material hopper.
- Material guidance
- Non-sticky bulk materials
- Disc diameter
- 600–2,000 mm
DESIGNED FOR THE PROCESS
Overview
Continuous volumetric feeding using a rotating disc below a material hopper. We configure the equipment around your material, required output and installation conditions.
Applications
- Ore
- Coal
- Cement
- Limestone
Mounting choices
Suspended and floor-supported arrangements are available.
Housing options

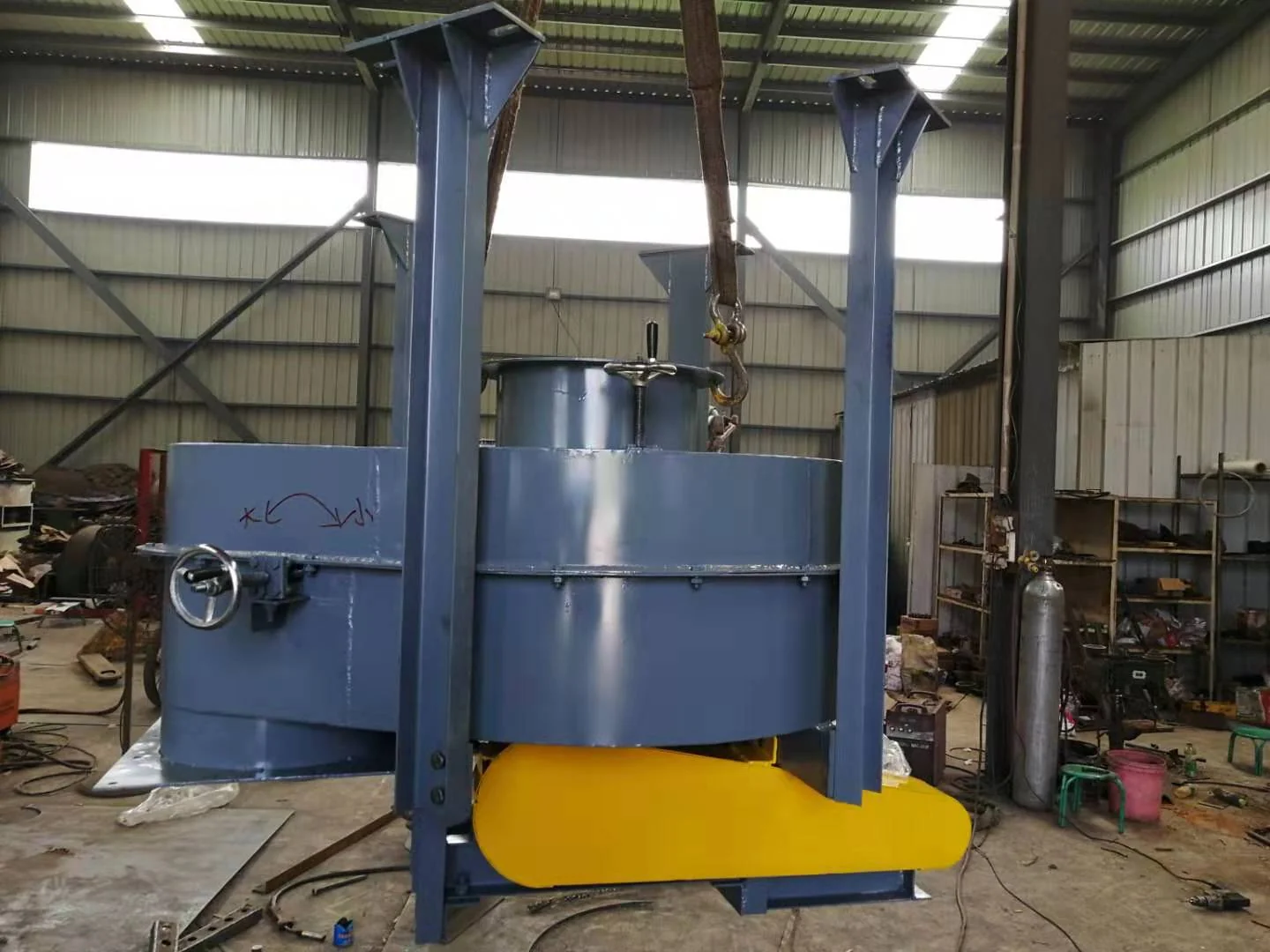

Open or enclosed structures can be selected.
CONFIGURATION & MODEL DATA
Specifications
Use these values to compare configurations. Final capacity, dimensions and power depend on the selected model, material and operating conditions.
| Material guidance | Non-sticky bulk materials |
|---|---|
| Disc diameter | 600–2,000 mm |
| Model | Disc diameter (mm) | Capacity (m³/h) | Power (kW) |
|---|---|---|---|
| 6 | 600 | 0.69–3.9 | 1.1 |
| 8 | 800 | 1.18–7.65 | 2.2 |
| 10 | 1,000 | 2.59–16.7 | 3 |
| 13 | 1,300 | 4.5–25 | 4 |
| 16 | 1,600 | 7.8–40 | 7.5 |
| 20 | 2,000 | 8.6–60 | 11 |
Reference values from the product information. Images may show different models or optional equipment. Confirm the complete supply scope with your quotation.
A CLOSER LOOK

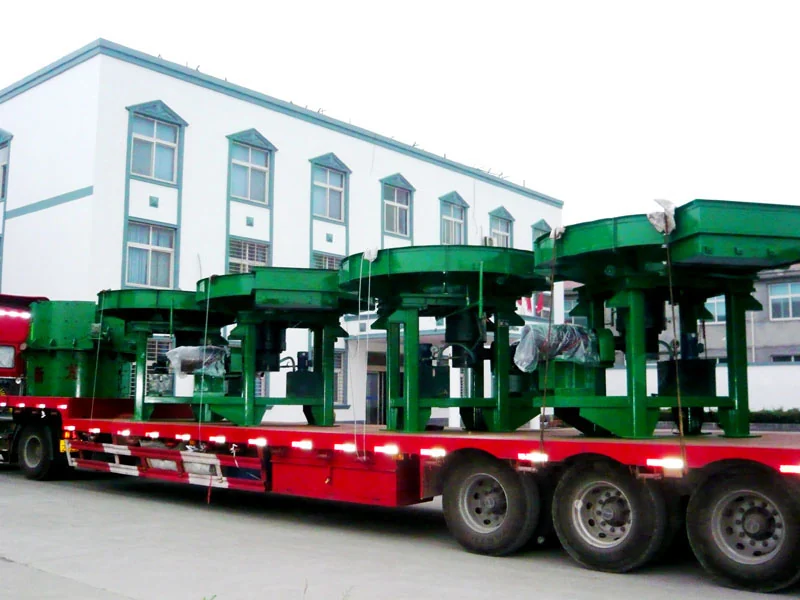

Equipment Gallery
Machine, component and configuration views from our equipment range.
MATCH THE MACHINE TO YOUR MATERIAL
Selection Guide
Send us the following information so we can review the right model and its connections to your production line.
Explore process solutions ↗- Material density and flow behaviour
- Required feed rate and control method
- Pickup point, receiving equipment and available space
Common Questions
Can the configuration be customized?
Discuss contact materials, dimensions, inlet and outlet positions, and the required control arrangement with our team. Available options depend on the selected equipment.
Which capacity should I use for selection?
Reference capacities are starting points. Send the material name, density, particle size and required output so the selected configuration can be checked for your process.
Can this machine work with other equipment?
Yes. We can review the feeding, transfer and downstream arrangements together. Share a layout or describe the equipment that needs to connect.
